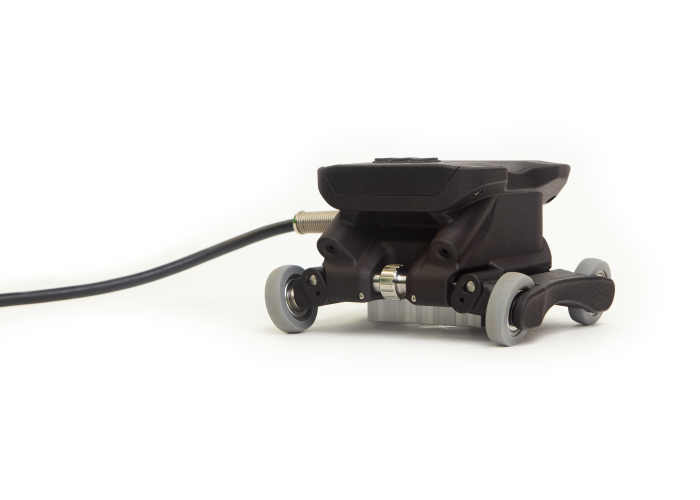

Sharck™ HR probe,74 mm coverage for Reddy®, 5 m
USD 21,130.00
In stock
SKU
SHARCK-HR-10PLUS-060-N05R
Lead Time: 1-2 months (Standard/typical lead time)
Description
TECA Sharck™ probe, high resolution, 60 spring loaded elements, 74 mm (2.9 in.) coverage. Features a built-in encoder with a Reddy® connector. Comes with a 160-pin array connector and a standard 5 meter (16.4 ft) cable.
| Nb. of channels | 60 |
|---|---|
| Liftoff compensation | Yes, dynamic |
| Coverage | 67 mm (2.7") |
| Density compensation (sharpening) | Yes |
| Cracks profile compensation | Yes |
| Ceramic tip | Yes |
| Alloys | Ferromagnetic |
| Cable length | 5 m (16 ft) |
| Depth sizing accuracy (typical) | ± 0.3 mm (0.012") at 80% certainty, 95% confidence |
| Embedded remote controls | Yes |
| Encoder design | Embedded and spring-loaded |
| Flexible/conformable | Yes, spring-loaded fingers |
| Liftoff tolerance | 1 mm (0.40") |
| Maximum operating temperature | 50 °C |
| Maximum scan speed | 600 mm/s (24"/s) |
| Maximum sizable depth | 3 mm (0.120") |
| Minimum detectable crack (typical) | 1.5 mm (0.060") L X 0.25 mm (0.010") D |
| Minimum opening diameter | 254 mm (10") |
| Minimum pipe diameter (Circ. scan) | 254 mm (10") |
| Minimum pipe diameter (Longi. scan) | 254 mm (10") |
| Nb. of channels required | 64 channels |
| Nb. of coil rows | 3 |
| Nb. of elements | 60 |
| Operating frequency (fixed) | 100 kHz |
| Permeability compensation | Yes - B up to X70 grades |
| Technology | Tangential eddy current array |
| Topologies | Sharck HR |
| Type | Sharck HR Array |
"Quick and accurate depth sizing of SCC. The best thing about Sharck is that you can be up an running within an hour of training, and be as good at sizing cracks as someone who has been using it for years."
- Pipeline Technician
