Sharck™ HR probe, 40.7 mm coverage for Reddy®, 5 m

Name: Sharck™ HR probe, 40.7 mm coverage for Reddy®, 5 m
SKU: SHARCK-HR-6PLUS-033-N05R
Price: 15840.00 USD
Availability: InStock

USD 15,840.00

In stock

SKU

SHARCK-HR-6PLUS-033-N05R

Qty

Lead Time: 1-2 months (Standard/typical lead time)

Description

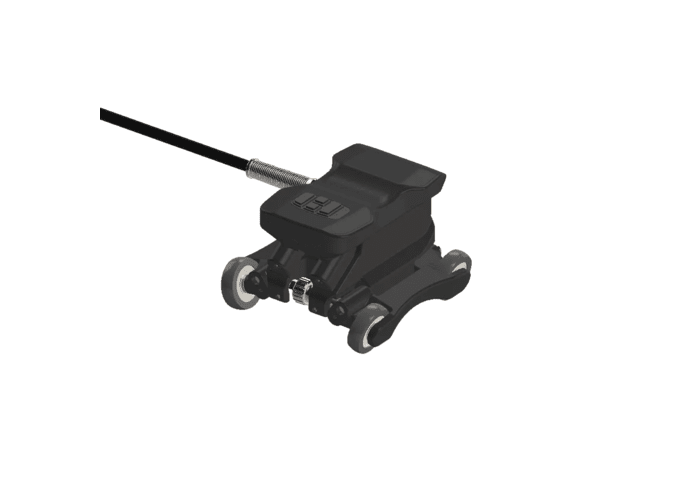

TECA Sharck™ probe, high resolution, 33 spring loaded elements, 40.7 mm (1.6 in.) coverage. Features a built-in encoder with a Reddy® connector. Comes with a 160-pin array connector and a standard 5 meter (16.4 ft) cable.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details and Specifications

More Information
Nb. of channels	33
Liftoff compensation	Yes, dynamic
Coverage	37 mm (1.5")
Density compensation (sharpening)	Yes
Cracks profile compensation	Yes
Ceramic tip	Yes
Alloys	Ferromagnetic
Cable length	5 m (16 ft)
Depth sizing accuracy (typical)	± 0.3 mm (0.012") at 80% certainty, 95% confidence
Embedded remote controls	Yes
Encoder design	Embedded and spring-loaded
Flexible/conformable	Yes, spring-loaded fingers
Liftoff tolerance	1 mm (0.40")
Maximum operating temperature	50 °C
Maximum scan speed	600 mm/s (24"/s)
Maximum sizable depth	3 mm (0.120")
Minimum detectable crack (typical)	1.5 mm (0.060") L X 0.25 mm (0.010") D
Minimum opening diameter	152 mm (6")
Minimum pipe diameter (Circ. scan)	152 mm (6")
Minimum pipe diameter (Longi. scan)	152 mm (6")
Nb. of channels required	64 channels
Nb. of coil rows	3
Nb. of elements	33
Operating frequency (fixed)	100 kHz
Permeability compensation	Yes - B up to X70 grades
Technology	Tangential eddy current array
Topologies	Sharck HR
Type	Sharck HR Array

Testimonials

"Quick and accurate depth sizing of SCC. The best thing about Sharck is that you can be up an running within an hour of training, and be as good at sizing cracks as someone who has been using it for years."

- Pipeline Technician
