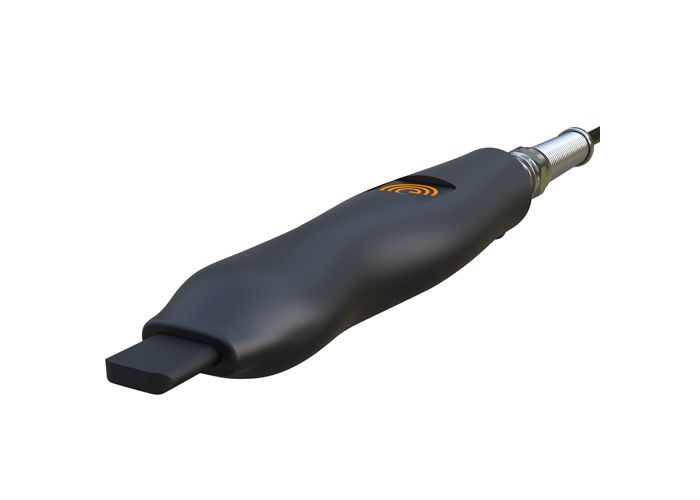

Sharck™ high resolution pencil probe for Ectane®, 5m
USD 4,495.00
In stock
SKU
SHARCK-HR-PEN-ST-N05TE
Lead Time: 3-4 months (Standard/typical lead time)
Description
Sharck™ pencil probe, high resolution – straight. Comes with a 41-pin Amphenol connector and a standard 5 meter (16.4 ft) cable.
| Nb. of channels | 1 |
|---|---|
| Liftoff compensation | Yes, dynamic |
| Coverage | Pencil |
| Density compensation (sharpening) | Yes |
| Cracks profile compensation | No |
| Ceramic tip | Yes |
| Alloys | Ferromagnetic |
| Cable length | 5 m (16 ft) |
| Depth sizing accuracy (typical) | ± 0.3 mm (0.012") at 80% certainty, 95% confidence |
| Liftoff tolerance | 1 mm (0.40") |
| Maximum operating temperature | 50 °C |
| Maximum scan speed | 600 mm/s (24"/s) |
| Maximum sizable depth | 3 mm (0.120") |
| Minimum detectable crack (typical) | 1.5 mm (0.060") L X 0.25 mm (0.010") D |
| Minimum opening diameter | 254 mm (10") |
| Minimum pipe diameter (Circ. scan) | 406 mm (16") |
| Minimum pipe diameter (Longi. scan) | 406 mm (16") |
| Nb. of elements | 1 |
| Operating frequency (fixed) | 100 kHz |
| Permeability compensation | Yes - B up to X70 grades |
| Technology | Tangential eddy current |
| Topologies | Sharck HR |
| Type | Sharck HR Pencil |
