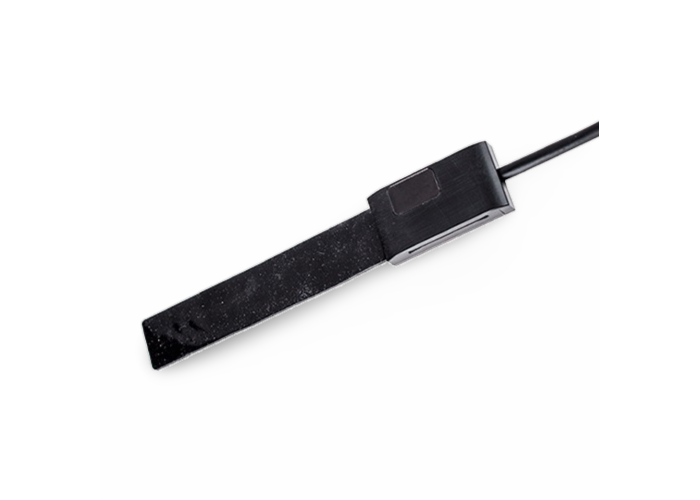

I-Flex™ large ECA probe, 250 kHz, 3 m
USD 8,160.00
In stock
SKU
ECA-IFG-079-250-048-N03S
Lead Time: 3-6 weeks (Standard/typical lead time)
Description
Standard eddy current array probe, I-Flex™ large with 3 different built-in topologies offering 32 to 128 channels, 79 mm (3.11 in.) coverage, 250 kHz central frequency, 48 coils. Comes with a 160-pin array connector and a 3 meter (9.8 ft) cable.
| Nb. of channels | 32, 59, 60 (I, LSD, SDD) |
|---|---|
| Frequency range | 50–525 kHz |
| Coverage | 79 mm (3.11") |
| Cable length | 3 m (9.8 ft) |
| Central frequency | 250 kHz |
| Coils diameter | 5 mm (0.20") |
| Flexible/conformable | Yes |
| Minimum bend radius | 40 mm (1.57") |
| Minimum detectable crack (typical) | 1.5 mm (0.06") |
| Nb. of channels required | 32 or 64 channels |
| Nb. of coils | 48 |
| Technology | Eddy current array |
| Topologies | Impedance, Long single driver, short double driver |
