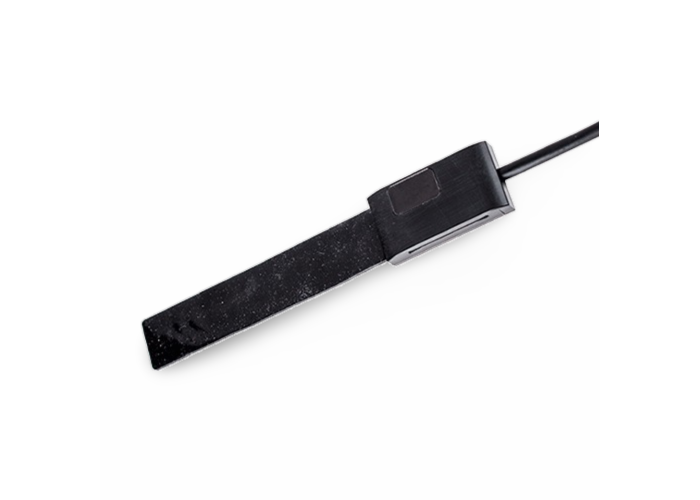

I-Flex™ medium ECA probe, 50 kHz, 3 m
USD 8,160.00
In stock
SKU
ECA-IFG-056-050-048-N03S
Lead Time: 1-2 months (Standard/typical lead time)
Description
Standard eddy current array probe, low frequency I-Flex™ medium with 3 built-in topologies offering 32 to 128 channels, 56 mm (2.20 in.) coverage, 50 kHz central frequency, 48 coils. Comes with a 160-pin array connector and a 3 meter (9.8 ft) cable.
| Nb. of channels | 32, 59, 60 (I, LSD, SDD) |
|---|---|
| Frequency range | 10–150 kHz |
| Coverage | 56 mm (2.21") |
| Cable length | 3 m (9.8 ft) |
| Central frequency | 50 kHz |
| Coils diameter | 3.5 mm (0.14") |
| Depth of penetration | Up to 3 mm (0.118") |
| Flexible/conformable | Yes |
| Minimum bend radius | 20 mm (0.787") |
| Minimum detectable crack (typical) | 1 mm (0.039") |
| Nb. of channels required | 32 or 64 channels |
| Nb. of coils | 48 |
| Technology | Eddy current array |
| Topologies | Impedance, Long single driver, short double driver |
