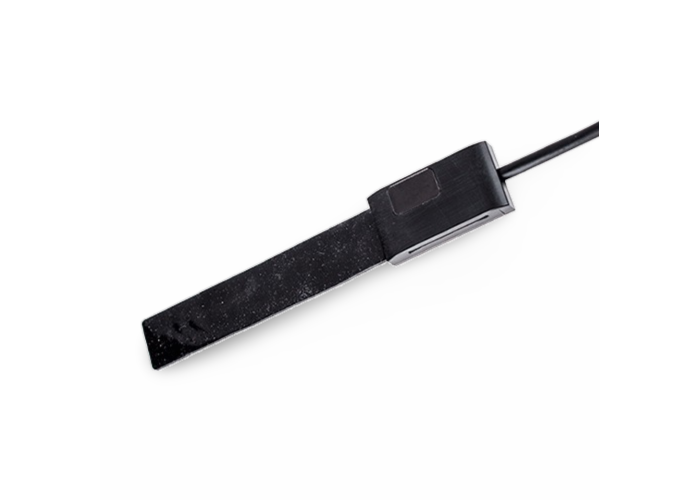

I-Flex™ extra-large ECA probe, 5 kHz, 3 m
USD 9,525.00
In stock
SKU
ECA-IFC-128-005-033-N03S
Lead Time: 1-2 months (Standard/typical lead time)
Description
Standard eddy current array probe, I-Flex™ extra-large, 128 mm (5.04 in.) coverage, 5 kHz central frequency, 33 coils offering up to 32 channels. Comes with a 160-pin array connector and a 3 meter (9.8 ft) cable.
| Nb. of channels | 32 |
|---|---|
| Frequency range | 0.6-20 kHz |
| Coverage | 128 mm (5.04") |
| Alloys | Non Ferromagnetic |
| Cable length | 3 m (9.8 ft) |
| Central frequency | 5 kHz |
| Coils diameter | 5.5 mm (transmitters), 7.25 mm (receivers) |
| Depth of penetration | Up to 6 mm (0.236") |
| Flexible/conformable | Yes |
| Minimum bend radius | 40 mm (1.57") |
| Nb. of channels required | 32 channels |
| Nb. of coils | 33 |
| Technology | Eddy current array |
| Topologies | Long Single Driver (LSD) |
