Sharck™ probe (fillet), 28mm coverage for Reddy®, 5m

Name: Sharck™ probe (fillet), 28mm coverage for Reddy®, 5m
SKU: SHARCK-FW028-G2-C-R-N05S
Price: 17160.00 USD
Availability: InStock

USD 17,160.00

In stock

SKU

SHARCK-FW028-G2-C-R-N05S

Qty

Lead Time: 1-2 months (Standard/typical lead time)

Description

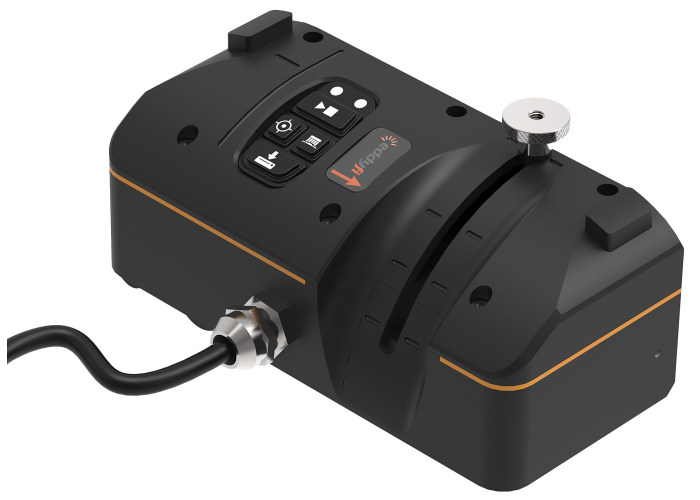

TECA Sharck™ probe for fillet welds, 2nd generation with ceramic fingers, 28 mm (1.1 in.) coverage. Requires 32 channels. Features a built-in, high-precision encoder for Reddy®. Comes with a 160-pin array connector and standard 5 m (16.4 ft) cable.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details and Specifications

More Information
Nb. of channels	28 (12 Depth, 12 Length, 4 Transverse)
Liftoff compensation	Yes, dynamic
Coverage	30 mm (1.2")
Length compensation for short cracks	Yes
Ceramic tip	Yes
Alloys	Ferromagnetic
Cable length	5 m (16 ft)
Depth sizing accuracy (typical)	± 20% (depending on weld roughness)
Embedded remote controls	Yes
Encoder design	Embedded and spring-loaded
Flexible/conformable	Yes, spring-loaded fingers
Length sizing accuracy (typical)	± 1 mm (0.40")
Liftoff tolerance	3 mm (0.120")
Maximum operating temperature	100 °C
Maximum scan speed	200 mm/s (8"/s)
Maximum sizable depth	7 mm (0.275")
Minimum detectable crack (typical)	3 mm (0.120") L X 0.5 mm (0.020") D
Minimum fillet weld curvature radius	320 mm (15") - concave and convex
Minimum fillet weld (face length)	6 mm (0.250")
Nb. of channels required	32 channels
Nb. of coil rows	2
Nb. of elements	12
Operating frequency (fixed)	20 kHz and 80 kHz
Permeability compensation	Yes
Technology	Tangential eddy current array
Topologies	Sharck
Type	Sharck FW Array
