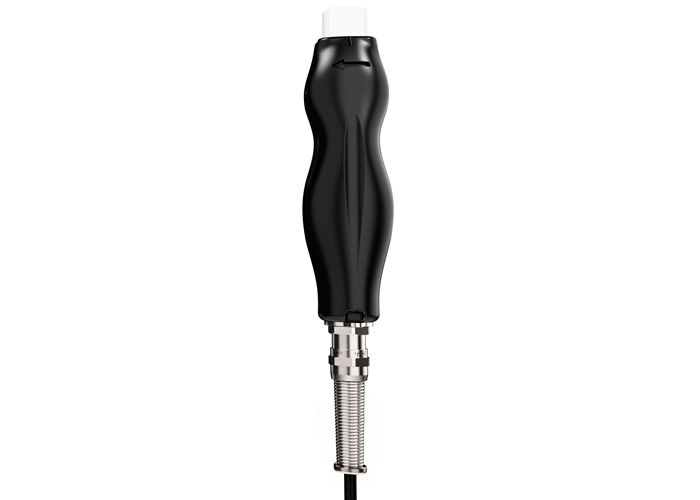

Sharck™ pencil probe, straight for Reddy®, 5 m
USD 5,440.00
In stock
SKU
SHARCK-PEN-ST-G2-C-N05TR
Lead Time: 2-4 weeks (Standard/typical lead time)
Description
TECA Sharck™ pencil probe – straight, 2nd generation with ceramic tip. Comes with a Reddy® 19-pin connector and a standard 5 m (16.4 ft) cable.
| Nb. of channels | 2 (1 Depth, 1 Length) |
|---|---|
| Liftoff compensation | Yes, dynamic |
| Ceramic tip | Yes |
| Alloys | Ferromagnetic |
| Cable length | 5 m (16 ft) |
| Depth sizing accuracy (typical) | ± 20% (depending on weld roughness) |
| Liftoff tolerance | 3 mm (0.120") |
| Maximum operating temperature | 100 °C |
| Maximum scan speed | 200 mm/s (8"/s) |
| Maximum sizable depth | 7 mm (0.275") |
| Minimum detectable crack (typical) | 3 mm (0.120") L X 0.5 mm (0.020") D |
| Minimum fillet weld curvature radius | 50 mm (2") - concave and convex |
| Minimum fillet weld (face length) | 6 mm (0.250") |
| Minimum opening diameter | 50 mm (2") |
| Minimum pipe diameter (Circ. scan) | 50 mm (2") |
| Minimum pipe diameter (Longi. scan) | 50 mm (2") |
| Nb. of elements | 1 |
| Operating frequency (fixed) | 20 kHz and 80 kHz |
| Permeability compensation | Yes |
| Technology | Tangential eddy current |
| Topologies | Sharck |
| Type | Sharck Pencil |
