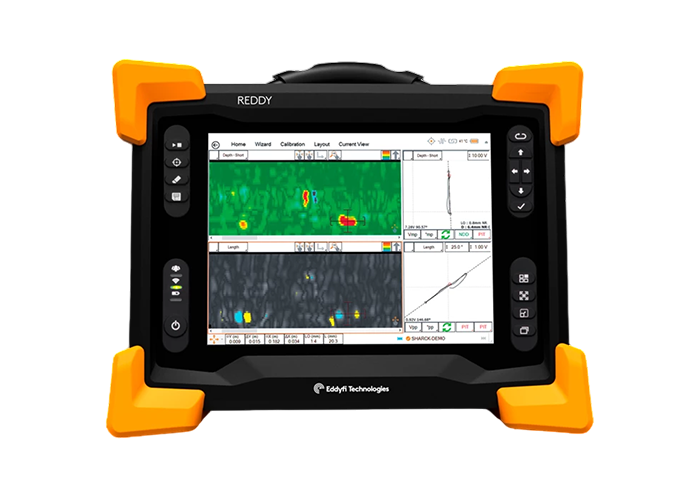

Reddy® with 64-channel ECA and MFL

USD 87,995.00
In stock
  • Very capable unit for surface ECA inspections
  • With MFL capabilities for maximum versatility
  • Upgradable later to 128-channel ECA

Lead Time: 2-3 months (Standard/typical lead time)



Reddy® portable 64-ch. surface ECA instrument w/MFL. C/w a large, multi-touch display. Incl. 2 batt., power supp., manual, rugged case. Includes perpetual embedded Magnifi® GO software for data acquisition and analysis.
More Information
Array connectors 1x 160 pin
Batteries - typical life 6-8 hours
Cooling Sealed and fanless
Data storage SSD, 100 GB
Display resolution 1024 × 768
Display size 26.4 cm (10.4")
Display type Capacitive multi-touch, with 3 mm (1/8 in), chemically strengthened glass cover. Non-reflective (AR coating), anti-fingerprint (oleophobic coating), optically bonded LCD and touchscreen. Passive backlight enhancement
Highly portable easy to use system Yes
Multitouch control Yes
Nb. of array channels 64
Nb. of input channels 8
Probability of detection High
Rope access applications Yes
Setup creation/management Setup wizards
Acquisition rate Up to 50 000 samples/sec
Batteries - type 2x li-ion, rechargeable, DOT compliant
Compliance ASME, EN 61010-1, CE, WEEE, FCC Part 15B, ICES-003, AS/NZS CISPR 22, RoHS
Data readback on PC software Yes
ECA frequency range 5 Hz - 10 MHz
ECA multiplexer SmartMUX
ECT connectors 1X 19-pin Fischer
ECT frequency range 5 Hz - 10 MHz
ECT simultaneous frequency Up to 160
Encoders and I/O connectors 12-pin Fischer
Frequency range 5 Hz–10 MHz
Inspection workflows Optimized, with hard buttons
Input impedance 50 or 100 Ohms
Injection modes Multiplexed, simultaneous, continuous
Optional PC software available Yes
Output voltage Up to 20 Vpp
Probe recognition and setup (ChipID) Automatic
Support custom application and probes Yes
Synchronization with I/O Yes
Harness available Yes
Connectivity Gigabit Ethernet, Wi-Fi, Dual Mode Bluetooth® 2.1, 2.1+EDR, 3.0, 3.0+HS, 4.0 (BLE), USB 2.0 (×3)
Dimensions (W x D x H) 355×288×127 mm (14.0×11.3×5.0 in)
Encoder inputs 2 axes, quadrature
IP rating Designed for IP65
Operating humidity 95%, non-condensing
Operating temperature 0°C to 40°C (32°F to 104°F)
Power supply/requirements Direct VAC or onboard batteries
Supported Technologies/Techniques ECT, ECA, MFL
Volume 13L (793.31 in3)
Weight (without batteries) 5.7 kg (12.5 lb)
Video output HDMI
Weight (with batteries) 6.6 kg (14.5 lb)

Depending on the instrument configuration:

  • Corrosion on ferromagnetic pipes, tank walls and more
  • Detecting and sizing cracks in stainless steel welds
  • Detecting and assessing stress corrosion cracking
  • Butt weld and fillet weld inspection for cracking and surface discontinuities
  • Faster, less operator-dependant, surface inspection compared to PT/MT
  • Assessing corrosion on aluminum and stainless steel tank floors
  • Gear inspection
  • Pipeline integrity

"Rugged piece of equipment with the best software in the industry. Using a software that is stable and easy to use not only makes the technicians life easier, it also decreases the inspection time and helps data interpretation for our clients."

- NDT Engineer
