Spyne™ adjustable holder for Reddy®, no probe, 15 m

USD 17,310.00
In stock
SKU
ECA-SPYNETOOL-6PLUS-N15R

Lead Time: 2-3 months (Standard/typical lead time)

Description

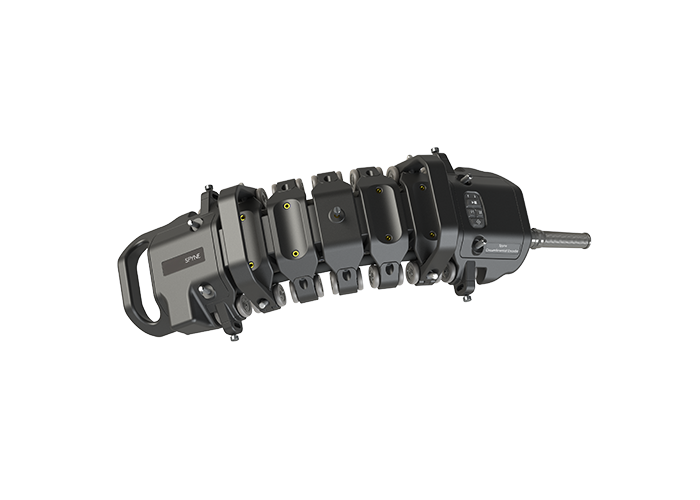

SPYNE™ tool – adjustable holder (probe not included) allowing axial scanning on pipes from 150 mm (6 in) OD up to flat surfaces. Features a built-in, high-precision encoder for Reddy (Ectane adapter included) and a standard 15-meter (49.2 ft) cable.
More Information
Nb. of channels Up to 128
Grid-As-U-Go™ Yes
Cable length 15 m (50 ft)
Embedded remote controls Yes
Encoder design Embedded, spring-loaded and detachable
Flexible/conformable Yes
Maximum scan speed 600 mm/s (24"/s)
Minimum pipe diameter (Circ. scan) 150 mm (6")
Minimum pipe diameter (Longi. scan) 150 mm (6")
Operating temperature Up to 150°C (302°F)
Technology Eddy current array
Topologies Refer to Spyne probe

"This tool could be compared to digital MPI. It provides a complete and reliable mapping of the surface indications while removing the human error that MPI brings. The Spyne has been impressive so far. It can find hard spots and linear indications < 2mm in a single pass while being so much faster than any other method on the market."

- Engineering lead
