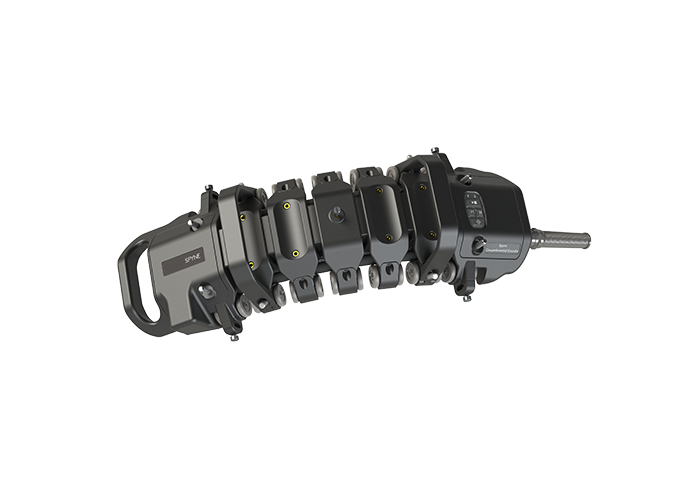

Spyne™ adjustable holder, no probe, 10 m cable
Lead Time: 2-5 weeks (Standard/typical lead time)
Description
SPYNE™ tool – adjustable holder (probe not included) allowing axial scan on pipes from 150 mm (6 in) OD up to flat surfaces. Features dual high-precision axial and circumferential encoders for Reddy and a standard 10-meter (32.8 ft) cable.
| Encoder design – Circumferential | Absolute gyroscope, detachable |
|---|---|
| Encoder design – Axial | Spring-loaded wheel, detachable |
| Minimum pipe diameter | 150 mm (6") |
| Nb. of channels | Up to 128 |
| Coverage | Up to 202 mm (8") |
| Cable length | 10 m (33 ft) |
| Embedded remote controls | Yes |
| Flexible/conformable | Yes |
| Maximum scan speed | 1200 mm/s (48"/s) |
| Operating temperature | Up to 150°C (302°F) |
| Technology | Eddy current array |
| Topologies | Refer to Spyne probe |
"This tool could be compared to digital MPI. It provides a complete and reliable mapping of the surface indications while removing the human error that MPI brings. The Spyne has been impressive so far. It can find hard spots and linear indications < 2mm in a single pass while being so much faster than any other method on the market."
- Engineering lead
