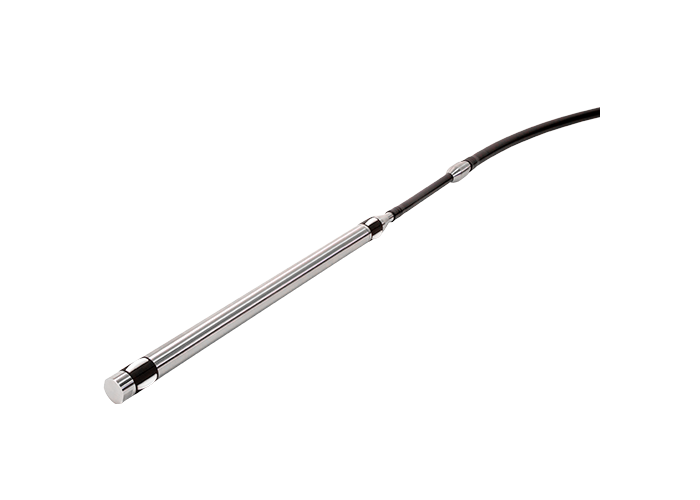

RFA rigid probe, Array with ABS/DIF, Ø 21.5mm, MF, 30m

USD 10,920.00
In stock
SKU
PRBT-RFA-DDSA-215MF-N30
  • High-resolution array and conventional ABS/DIFF coils
  • Same pulling speed, cleaning, and fill factor than conv. RFT
  • Robust centering devices, designed for ferrous inspections

Lead Time: 1-2 months (Standard/typical lead time)

Highlights

Description

RFA dual driver probe w/ high-resolution array and conventional ABS/DIFF coils. Rigid design, Ø 21.5 mm (0.846 in), MF 50-2,000 Hz frequency range, 30 m (98 ft) nylon cable. Requires Ectane®3 with RFT and array (64 or 128 ch.) option.
More Information
Center frequency 300 Hz
Connector 41-pin
Wear rings Yes
Centering device Yes
Cable length 30 m (98 ft)
Cable type Nylon
Defect side ID & OD
Frequency MF
Material inspected Ferromagnetic
Nb. of channels required Ectane®3 with RFT and array (64 or 128 ch.) option
Nb. of coil rows 2
Nb. of drivers 2
Probe diameter (in.) 0.846
Probe diameter (mm) 21.5
Sleeve Stainless steel
Type of tubes Plain, straight
Tubing probe model DDSA - Dual Driver, Standard & Array
Tubing probe technique RFA
RFA rigid probe, Array with ABS/DIF, Ø 21.5mm, MF, 30m
