RFA rigid probe, Array with ABS/DIF, Ø 19.5mm, MF, 30m
USD 10,920.00
In stock
SKU
PRBT-RFA-DDSA-195MF-N30
- High-resolution array and conventional ABS/DIFF coils
- Same pulling speed, cleaning, and fill factor than conv. RFT
- Robust centering devices, designed for ferrous inspections
Lead Time: 3-6 weeks (Standard/typical lead time)
Highlights
Description

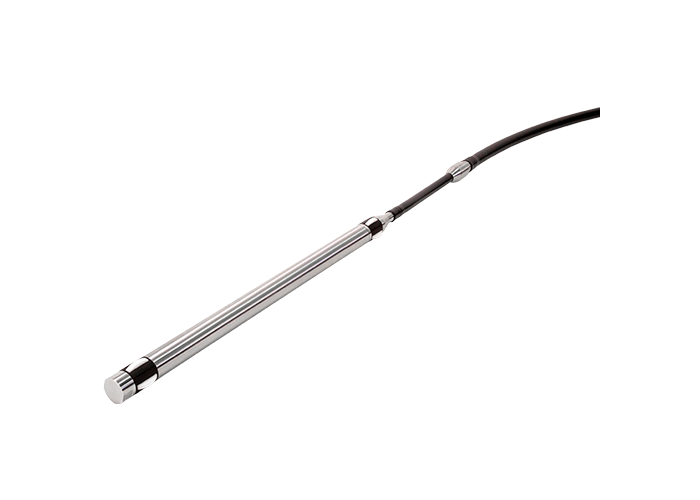

RFA dual driver probe w/ high-resolution array and conventional ABS/DIFF coils. Rigid design, Ø 19.5 mm (0.768 in), MF 50-2,000 Hz frequency range, 30 m (98 ft) nylon cable. Requires Ectane®3 with RFT and array (64 or 128 ch.) option.Center frequency | 300 Hz |
---|---|
Connector | 41-pin |
Wear rings | Yes |
Centering device | Yes |
Cable length | 30 m (98 ft) |
Cable type | Nylon |
Defect side | ID & OD |
Frequency | MF |
Material inspected | Ferromagnetic |
Nb. of channels required | Ectane®3 with RFT and array (64 or 128 ch.) option |
Nb. of coil rows | 2 |
Nb. of drivers | 2 |
Probe diameter (in.) | 0.768 |
Probe diameter (mm) | 19.5 |
Sleeve | Stainless steel |
Type of tubes | Plain, straight |
Tubing probe model | DDSA - Dual Driver, Standard & Array |
Tubing probe technique | RFA |
