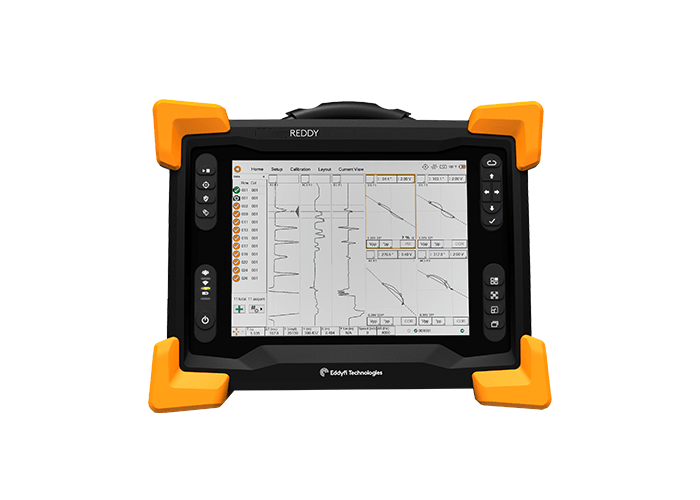

Reddy® for AC and ECT tubing
USD 39,135.00
In stock
SKU
REDDY-AC-E
- No MFL capabilities
- Portable, battery-operated, sealed, large bright display
- Portable, battery-operated, sealed, large bright display
Lead Time: 2-4 weeks (Standard/typical lead time)
Highlights
Description
Reddy® portable instrument for AC/ECT tubing with a large, premium-quality multi-touch display. Incl. 2 batt., power supp., manual, rugged case. Includes perpetual embedded Magnifi® GO software for data acquisition and analysis.
| Batteries - typical life | 6-8 hours |
|---|---|
| Cooling | Sealed and fanless |
| Data storage | SSD, 100 GB |
| Display resolution | 1024 × 768 |
| Display size | 26.4 cm (10.4") |
| Display type | Capacitive multi-touch, with 3 mm (1/8 in), chemically strengthened glass cover. Non-reflective (AR coating), anti-fingerprint (oleophobic coating), optically bonded LCD and touchscreen. Passive backlight enhancement |
| Highly portable easy to use system | Yes |
| Multitouch control | Yes |
| Nb. of input channels | 8 |
| Rope access applications | Yes |
| Setup creation/management | Setup wizards |
| Acquisition rate | Up to 50 000 samples/sec |
| Batteries - type | 2x li-ion, rechargeable, DOT compliant |
| Compliance | ASME, EN 61010-1, CE, WEEE, FCC Part 15B, ICES-003, AS/NZS CISPR 22, RoHS |
| Data readback on PC software | Yes |
| ECT frequency range | 5 Hz - 10 MHz |
| ECT simultaneous frequency | Up to 160 |
| Encoders and I/O connectors | 18-pin |
| Frequency range | 5 Hz–10 MHz |
| Inspection workflows | Optimized, with hard buttons |
| Input impedance | 50 or 100 Ohms |
| Injection modes | Simultaneous, continuous |
| Output voltage | Up to 20 Vpp |
| Harness available | Yes |
| Connectivity | Gigabit Ethernet, Wi-Fi, Bluetooth®, USB 2.0 (×3) |
| Dimensions (W x D x H) | 355×288×127 mm (14.0×11.3×5.0 in) |
| IP rating | Designed for IP66 |
| Operating humidity | 95%, non-condensing |
| Operating temperature | 0°C to 40°C (32°F to 104°F) |
| Power supply/requirements | Direct VAC or onboard batteries |
| Supported Technologies/Techniques | ECT |
| Volume | 13L (793.31 in3) |
| Weight (without batteries) | 5.7 kg (12.5 lb) |
| Video output | HDMI |
| Weight (with batteries) | 6.6 kg (14.5 lb) |
- Chillers, air conditioning / HVAC
- Heat exchangers (non-ferrous)
"Great complete solution on one unit. My technicians are able to acquire, analyze and report right next to the chiller so we can assess the equipment faster."
- Commercial HVAC Services Sales Leader
