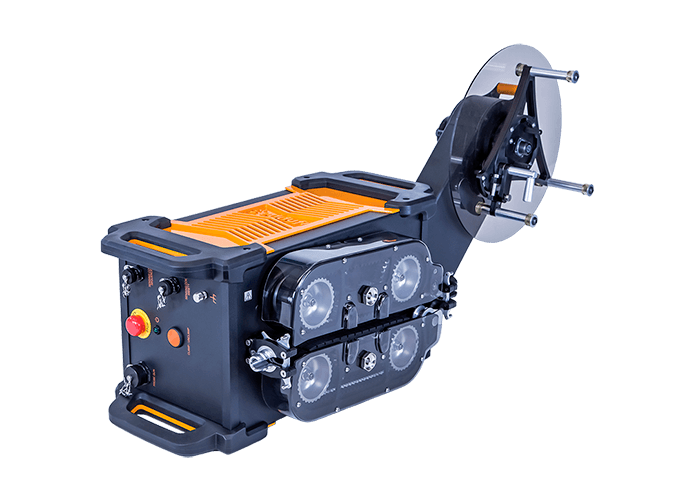

Probot™ high-performance automated probe pusher
USD 64,085.00
In stock
SKU
PROBOT-UNIT
- Light, compact with a small footprint, and sealed
- No compressed air supply necessary (all electric)
- Seamlessly integrated with Magnifi® software
Lead Time: 3-4 months (Standard/typical lead time)
Highlights
Description
Probot™ high-performance probe drive. Includes belt drive, integrated controls, 2 encoders, reel, spool, cables (Pwr, RJ-45 and 18-pin) and 2 transport cases. C/w standard belts for 3/8" & 5/16" poly. Slip rings, adapters, conduits, remote not incl.
| Weight | 23.6 kg (52 lb) |
|---|---|
| Dust proof | Yes |
| Sealed | Yes |
| Compressed air | No |
| Build-in safety features | Anti-slipping automatic stop and adjustable maximum current limiter |
| Dimensions (W x D x H) | 307 mm x 939 mm x 521 mm |
| Handle | Yes |
| Motion mechanism | Rubber belts |
| Operation side | Left or right-hand side |
| Power supply/requirements | 110–120 V/220–240 V, 50–60 Hz |
| Probe speed range | 0.025-2.5 m/s |
| Safety alarm | Mechanical and electronical |
| Sensing coil compatibility | Yes |
| Sequencing types | Manual, Encoder, Air-to-air, Manual air-to-air |
| Supported Technologies/Techniques | ECT, NFT, RFT, MFL, IRIS |
| Take-up reel weight | 6.4 kg (14 lb) |
