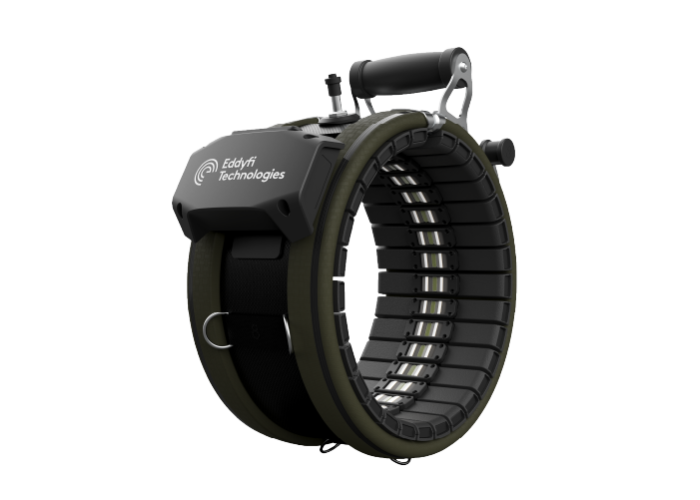

26" Piezo-collar - includes modules and transducers
USD 73,920.00
In stock
SKU
PIEZO-GWT-TOOL-POP-26
Lead Time: 3-6 weeks (Standard/typical lead time)
Description
26" High performance Piezo-collar for use with the SONYKS™ instrument; fully populated with 2-ring high density broadband modules and transducers. To inspect other smaller dia pipesizes, additional Piezo-collars need to be purchased (collar only).Automatic collar recognition | Pipe size, orientation and angular position |
---|---|
Frequency range | 20–80 kHz broadband collection |
Maximum surface temperature | 120°C (248°F) |
Pipe size range single collar | 168–914 mm (6–36") single collar |
Pipe size range dual collar | 660–1829 mm (26-72") dual collar setup |
Transduction method | Piezoelectric transducers (PZT) |
