22" Piezo-collar - includes modules and transducers

USD 66,770.00
In stock

Lead Time: 3-6 weeks (Standard/typical lead time)

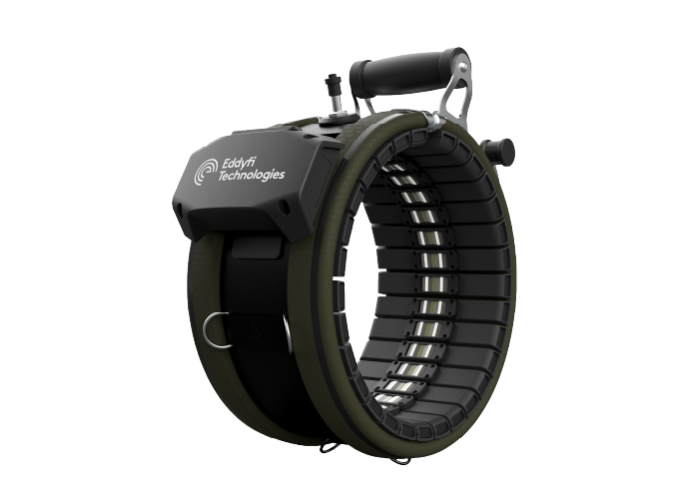

22" High performance Piezo-collar for use with the SONYKS™ instrument; fully populated with 2-ring high density broadband modules and transducers. To inspect other smaller dia pipesizes, additional Piezo-collars need to be purchased (collar only).
More Information
Automatic collar recognition Pipe size, orientation and angular position
Frequency range 20–80 kHz broadband collection
Maximum surface temperature 120°C (248°F)
Pipe size range single collar 168–914 mm (6–36") single collar
Pipe size range dual collar 660–1829 mm (26-72") dual collar setup
Transduction method Piezoelectric transducers (PZT)
22" Piezo-collar - includes modules and transducers
