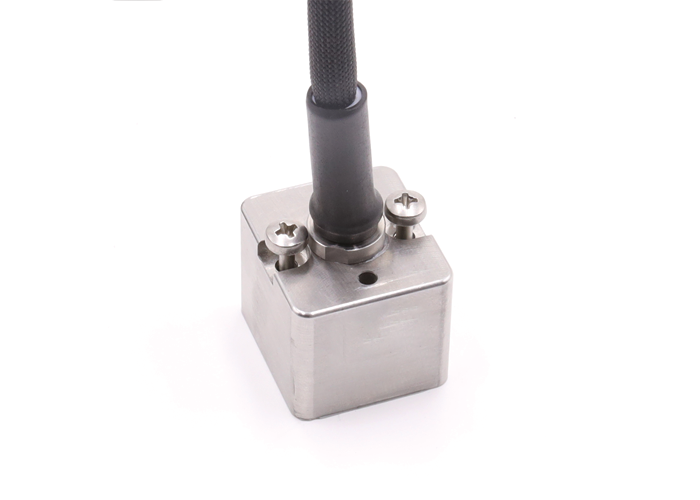

Matrix PAUT Probe, 16x4 elements, 5MHz, A11, 2.5m, ZPAC
USD 9,340.00
In stock
SKU
5M16x4-A11-22.4x8-2.5-ZPAC
Lead Time: 1-2 months (Standard/typical lead time)
Description
64-element matrix array probe - 5MHz - Active aperture of 22.4mm x 8mm - Pitch A: 1.4mm - Pitch B: 2mm - A11 casing - 2.5m cable - ZPAC connector
| Product type | Matrix array |
|---|---|
| Connector | ZPAC |
| Array type | Matrix |
| Cable length | 2.5 m (8 ft) |
| Casing type | A11 |
| Central frequency | 5 MHz |
| Impedance matching | Rexolite |
| Nb. of elements/channels | 16x4 |
| Pitch | 1.4 mm x 2.0 mm |
| Total active aperture dimensions | 22.4 mm x 8 mm |
