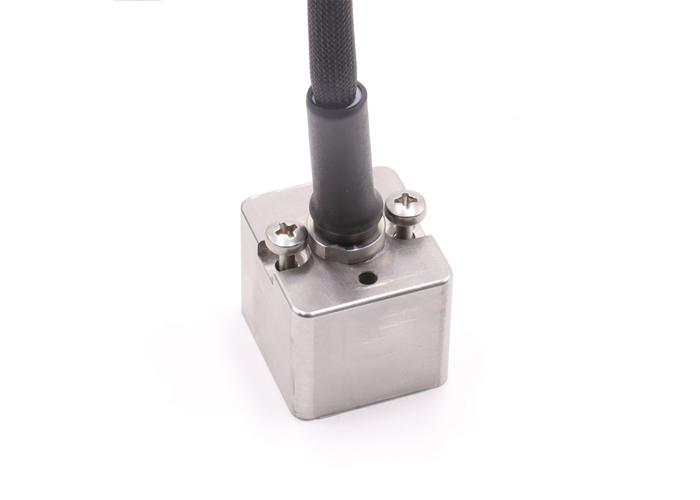

Linear PAUT Probe, 64 elements, 10MHz, A11, 2.5m

Name: Linear PAUT Probe, 64 elements, 10MHz, A11, 2.5m
SKU: 10L64-A11-19.2X10-2.5-IPEX
Price: 5990.00 USD
Availability: InStock

USD 5,990.00

In stock

SKU

10L64-A11-19.2X10-2.5-IPEX

Qty

Lead Time: 3-6 weeks (Standard/typical lead time)

Description

64-element linear array probe - 10MHz - Active aperture of 19.2mm x 10 mm - Pitch: 0.3mm - Elevation: 10 mm - A11 casing - 2.5m cable - IPEX connector

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details and Specifications

More Information
Product type	General purpose linear
Connector	IPEX
Array type	Linear
Cable length	2.5 m (8 ft)
Casing type	A11
Central frequency	10 MHz
Impedance matching	Rexolite
Nb. of elements/channels	64
Pitch	0.3 mm
Total active aperture dimensions	19.2 mm x 10 mm

Linear PAUT Probe, 64 elements, 10MHz, A11, 2.5m

Add to Cart

Generating your quote will provide a quote number for future reference. Easy and non-binding.

Linear PAUT Probe, 64 elements, 10MHz, A11, 2.5m

Related products
