Linear PAUT Probe, 32 elements, 5MHz, A5, 2.5m
USD 4,990.00
In stock
SKU
5L32-A5-19.2X20-2.5-IPEX
Lead Time: 2-5 weeks (Standard/typical lead time)
Description

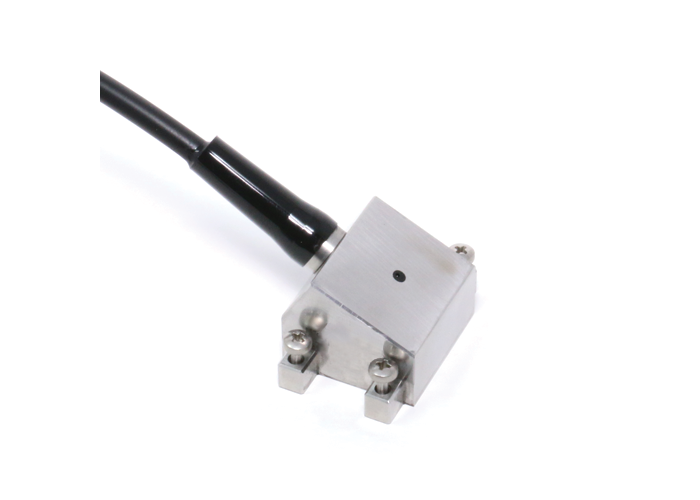

32-element linear array probe - 5MHz - Active aperture of 19.2mm x 20mm - Pitch: 0.60mm - Elevation: 20mm - A5 casing - 2.5m cable - IPEX connector
| Product type | Weld inspection |
|---|---|
| Connector | IPEX |
| Array type | Linear |
| Cable length | 2.5 m (8 ft) |
| Casing type | A5 |
| Central frequency | 5 MHz |
| Impedance matching | Rexolite |
| Nb. of elements/channels | 32 |
| Pitch | 0.6 mm |
| Total active aperture dimensions | 19.2 mm x 20 mm |
