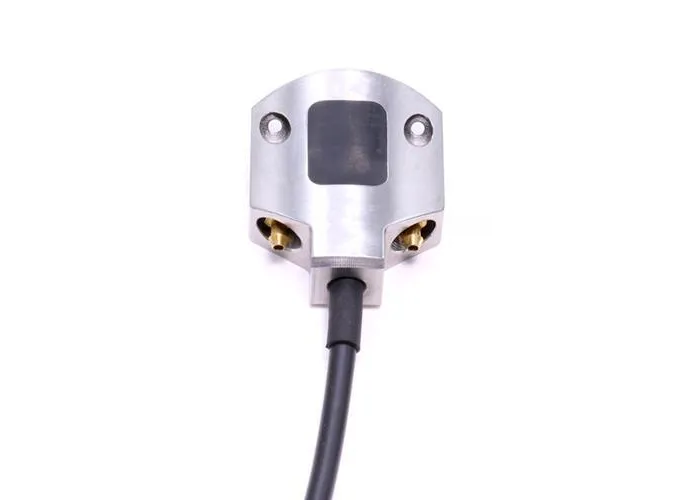

Linear PAUT Probe, 16 elements, 5MHz, A15, 35mm radius, 5m, ZPAC
USD 5,075.00
In stock
SKU
5CCEV35-16-A15-8X10-5-ZPAC
Lead Time: 1-2 months (Standard/typical lead time)
Description
16-element linear array probe - 5MHz - Concave Elevation Focused 35mm radius - Active aperture of 8mm x 10 mm - Pitch: 0.5mm - Elevation: 10 mm - A15 casing - Impedance matching to rexolite - 5m cable - ZPAC connector
| Product type | Low profile weld inspection |
|---|---|
| Connector | ZPAC |
| Array type | Linear |
| Cable length | 5 m (16 ft) |
| Casing type | A15 |
| Central frequency | 5 MHz |
| Impedance matching | Rexolite |
| Nb. of elements/channels | 16 |
| Pitch | 0.5 mm |
| Total active aperture dimensions | 8 mm x 10 mm |
