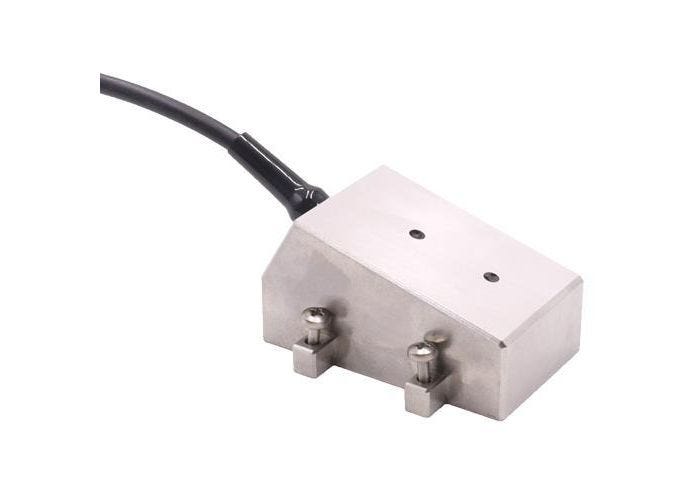

Linear PAUT Probe, 16 elements, 2.25MHz, A4, 2.5m
USD 4,570.00
In stock
SKU
2.25L16-A4-32X32-2.5-IPEX
Lead Time: 3-6 weeks (Standard/typical lead time)
Description
16-element linear array probe - 2.25MHz - Active aperture of 32mm x 32 mm - Pitch: 2.00mm - Elevation: 32 mm - A4 casing - 2.5m cable - IPEX connector
| Product type | Weld inspection |
|---|---|
| Connector | IPEX |
| Array type | Linear |
| Cable length | 2.5 m (8 ft) |
| Casing type | A4 |
| Central frequency | 2.25 MHz |
| Impedance matching | Rexolite |
| Nb. of elements/channels | 16 |
| Pitch | 2 mm |
| Total active aperture dimensions | 32 mm x 32 mm |
