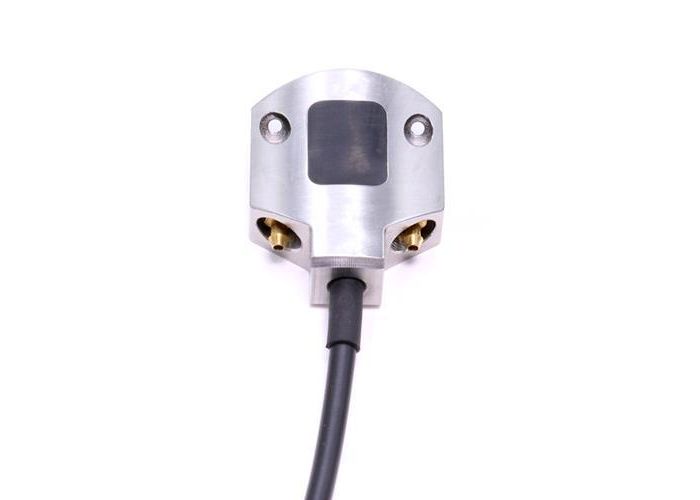

Linear PAUT Probe, 16 elements, 10MHz, A15, 35mm radius, 2.5m

Name: Linear PAUT Probe, 16 elements, 10MHz, A15, 35mm radius, 2.5m
SKU: 10CCEV35-16-A15-8X10-2.5-IPEX
Price: 5390.00 USD
Availability: InStock

USD 5,390.00

In stock

SKU

10CCEV35-16-A15-8X10-2.5-IPEX

Qty

Lead Time: 2-5 weeks (Standard/typical lead time)

Description

16-element linear array probe - 10MHz - Concave Elevation Focused 35mm radius - Active aperture of 8mm x 10 mm - Pitch: 0.5mm - Elevation: 10 mm - A15 casing - Impedance matching to rexolite - 2.5m cable - IPEX connector

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details and Specifications

More Information
Product type	Low profile weld inspection
Connector	IPEX
Array type	Linear
Cable length	2.5 m (8 ft)
Casing type	A15
Central frequency	10 MHz
Impedance matching	Rexolite
Nb. of elements/channels	16
Pitch	0.5 mm
Total active aperture dimensions	8 mm x 10 mm

Linear PAUT Probe, 16 elements, 10MHz, A15, 35mm radius, 2.5m
