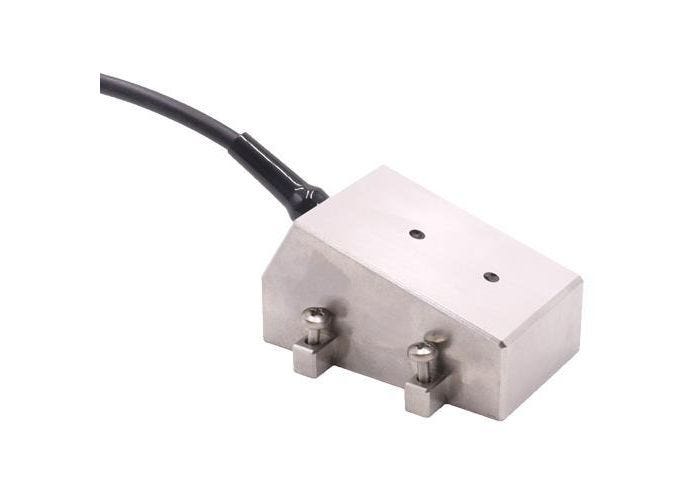

Linear PAUT Probe, 16 elements, 1.5MHz, A4, 2.5m
USD 5,070.00
In stock
SKU
1.5L16-A4-44.8X26-2.5-IPEX
Lead Time: 3-6 weeks (Standard/typical lead time)
Description
16-element linear array probe - 1.5MHz - Active aperture of 44.8mm x 26 mm - Pitch: 2.8mm - Elevation: 26 mm - A4 casing - Impedance matching to rexolite - 2.5m cable - IPEX connector
| Product type | Weld inspection |
|---|---|
| Connector | IPEX |
| Array type | Linear |
| Cable length | 2.5 m (8 ft) |
| Casing type | A4 |
| Central frequency | 1.5 MHz |
| Impedance matching | Rexolite |
| Nb. of elements/channels | 16 |
| Pitch | 2.8 mm |
| Total active aperture dimensions | 44.8 mm x 26 mm |
