Gekko® 32:128PR with PAUT, UT, TOFD without TFM

USD 55,995.00
In stock
SKU
GEKKO-32:128PR
  • Entry-level unit in Gekko family (32-ch active aperture)
  • No TFM, can be upgraded later
  • Multi-group weld inspection fully covered

Lead Time: 2-3 weeks (Standard/typical lead time)

Highlights

Description

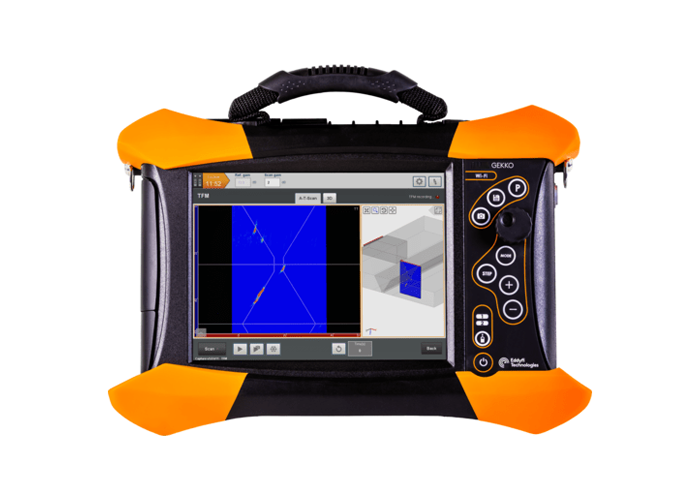

GEKKO® 32:128PR portable UTPA instrument with 256GB SSD, easy-latch adaptor, 2 batt., PS&AC adaptor, WiFi dongle, manual, rugged case. Includes perpetual embedded CAPTURE™GO software for data acquisition and analysis.
More Information
A-Scan height (dynamic range) Up to 800%
Adaptive TFM (ATFM) No
Array connectors 1x IPEX
Batteries - typical life Up to 6 hours
Cooling Sealed with external fans
Data storage SSD, 256 GB
Display resolution 1024 × 768
Display size 26.4 cm (10.4")
Display type High contrast resistive touch screen
Maximum active aperture 32
Nb. of receiving elements 128
Paperless Reporting Yes
Pulser (PAUT) voltage From 12 V to 120 V (with 1 V steps)
Pulser (UT) voltage From 12 V to 200 V (with 1 V steps)
Remote control availability Yes
Rope access applications Yes
Setup creation/management Setup wizards, application
Shockproof rating According to MIL-STD-810G
Total Focusing Method (TFM) No
Batteries - type 2x li-ion, rechargeable, DOT compliant
Compliance EN ISO 18563-1:2015 GR2, EN 12668-1:2010 GR2, AITM-00016 Issue5 table7; AITM-00013 Issue 6 Table11
Data readback on PC software Yes
Defect table (for reporting) Yes
Digitizing 16-bit resolution
Encoders and I/O connectors 1x 16-pin LEMO
Frequency range 0.4 MHz to 20 MHz
Gain range (PAUT) Up to 120 dB (0.1 dB steps)
Gain range (UT-TOFD) Up to 120 dB (0.1 dB steps)
Gates Floating and tracking for repeatable and reliable results
Input impedance 50 Ohms
Optional PC software available Yes
Programmable alarms Yes
Pulse type (PAUT) Bipolar square pulse
Pulse type (UT-TOFD) Negative square pulse
Pulse width 30 ns to 1250 ns
Support custom application and probes Yes
UT/TOFD connectors 4x LEMO 00
Synchronization with I/O Yes
Full screen mode Yes
Connectivity Gigabit Ethernet, Wi-fi, USB 2.0 (x3), USB 3.0 (x1)
Dimensions (W x D x H) 400x273x131 mm
External trigger 0
Encoder inputs 3-axis, TTL (5V)
IP rating Designed for IP65
Operating humidity 12%RH – 78%RH
Operating temperature -10° to 45°C (14 to 113°F)
Power supply/requirements 15 V, 5.67 A, 85VA
Programmable outputs No
Pulser (PAUT) fall time <6 ns
Pulser (UT-TOFD) fall time <5ns
Reload data from defect table Yes
Supported Technologies/Techniques UT, TOFD, PAUT
Storage SSD, 256 GB
Storage temperature -20°C to 60°C (-4°F to 140°F)
Volume 14.3L (873 in3)
Weight (without batteries) 5.4 kg (11.1 lb)
Video output HDMI
Weight (with batteries) 6.4 kg (14.1 lb)

Depending on the instrument configuration:

  • Weld inspection (UT, TOFD, PAUT, TFM, PWI)
  • Corrosion mapping, including large areas
  • Multi-group weld inspection procedures fully covered
  • HTHA and hydrogen damages inspection with TFM
  • Thick welds and CRA/stainless steel weld inspection enhanced with 128-element aperture
  • Complex geometry dedicated solution for nozzle and fillet welds (Y and T joints)
  • Flange face
  • Bolt inspection
  • Composite inspection

"The improved user interface in the acquisition window enables the user to adapt and augment their setup without the inconvenience of returning to the main setup parameters, saving valuable time. The new ray tracing features now include important detail regarding angle of intersection with the weld bevel, which is so important."

- Advanced UT Level III



"Our chosen ultrasonic data acquisition platform is undoubtedly the Gekko. It’s user-friendly interface, with easy to navigate menus, and repeatable reliability contributes to valuable advancements and cost savings for our program. We have further experienced multiple software updates allowing us to set up multi-group TFM, faster data acquisition speeds, and improved imaging resolution for our deliverables."

- Premier pipeline integrity leader

Gekko® 32:128PR with PAUT, UT, TOFD without TFM
