EMERALD 64:128PR with PAUT, UT, TOFD, TFM64-HR-D. IPEX
USD 135,560.00
In stock
SKU
ZPA-RDT-EMERALD-64/128PR-TFM
Lead Time: 1-2 months (Standard/typical lead time)
Description

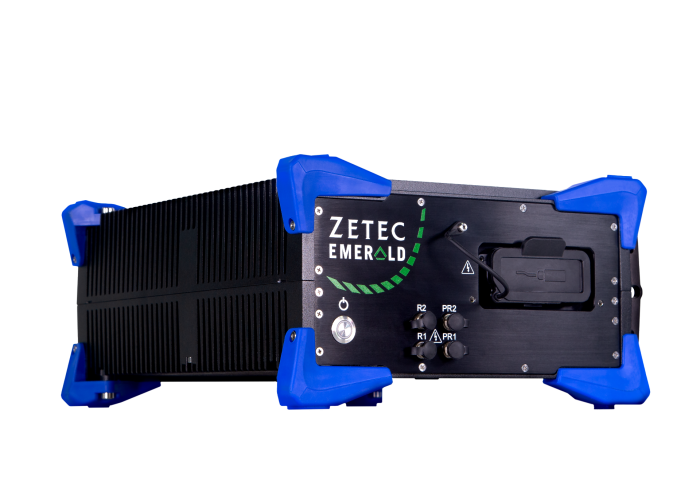

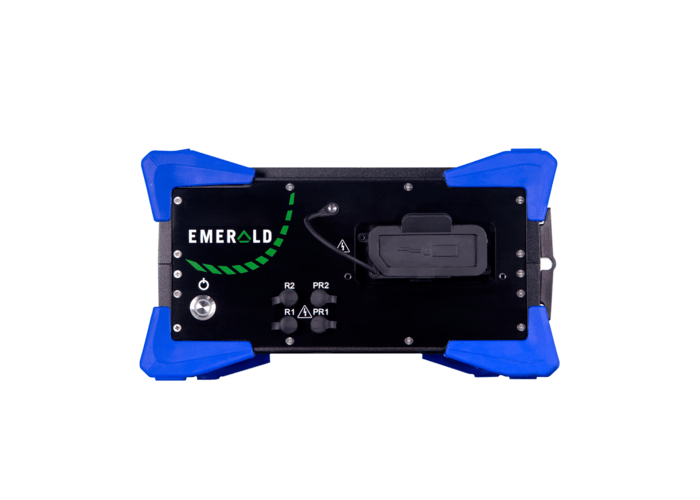

EMERALD - 64/128PR with real-time TFM64 (1M pixels) and raw data saving - IPEX connector. Kit includes instrument, 1 AC adapter, 1 carrying case, power cables, 1 Ethernet cable, 1 user manual.
| A-Scan height (dynamic range) | Up to 800% |
|---|---|
| Array connectors | 1x IPEX |
| Cooling | No air intake, external fans |
| Maximum active aperture | 64 |
| Nb. of receiving elements | 128 |
| Pulser (PAUT) voltage | Unipolar: 35 V to 75 V ±10%, step 5 V, Bipolar: 50 Vpp to 150 Vpp ±10%, step 5 V |
| Pulser (UT) voltage | From 50 V to 200 V ±10%, step 5V |
| Shockproof rating | Transit drop 1.22 m as per MIL-STD 810G, method S16.6, procedure 1V, Transportation as per MIL-STD 810G, methods 514.6C, category 7 and 514.6C-1, category 4 |
| Total Focusing Method (TFM) | Yes |
| Compliance | ISO 18563-1 / ISO 22232-1 |
| Data readback on PC software | Yes |
| Digitizing | 16-bit resolution |
| Encoders and I/O connectors | LEMO EEG.1K.316.CLL, LEMO EEG.2K.332.CLN, and LEMO EEG.2K.318.CLN Output for daisy-chaining |
| Frequency range | PA: 0.5 to 18 MHz, UT: 0.5 to 22.5 MHz |
| Gain range (PAUT) | 76 dB Hard, 96 Soft |
| Gain range (UT-TOFD) | 76 dB Hard, 96 Soft |
| Gates | 6 + 1 synchronization gate (peak, crossing, auto-crossing, homing) |
| Input impedance | 50 Ohms |
| Programmable alarms | Yes |
| Pulse type (PAUT) | Negative unipolar square wave, Bipolar square wave |
| Pulse type (UT-TOFD) | Negative unipolar square wave |
| Pulse width | 25 ns to 500 ns ±5ns at increments of 5 ns |
| Support custom application and probes | Yes |
| UT/TOFD connectors | 4x LEMO 00 |
| Synchronization with I/O | Yes |
| Connectivity | Gigabit Ethernet (5GBase-T) |
| Dimensions (W x D x H) | 294×162×373 mm (11.5×6.4×14.7 in) |
| External trigger | Yes |
| Encoder inputs | 3 quadrature-type, TTL (5V) |
| IP rating | Designed for IP65 |
| Operating humidity | 80% up to 31°C |
| Operating temperature | -5°C to 45°C (23°F to 113°F) |
| Power supply/requirements | 100-120 VAC / 220-240 VAC |
| Pulser (PAUT) fall time | < 10 ns at 75 V in 50 Ohms (10–90 %) |
| Pulser (UT-TOFD) fall time | < 10 ns at 75 V in 50 Ohms (10–90 %) |
| Supported Technologies/Techniques | UT, TOFD, PAUT, TFM, PWI, raw Data-Saving |
| Storage temperature | -40°C to 70°C (-40°F to 158°F) |
| Weight (with batteries) | 9 kg (19.8 lb) |
- Laboratory and research
- Industrial applications
- High-speed UT/TOFD/PAUT/TFM/PWI inspections
- Integration with Software development kit (SDK)
