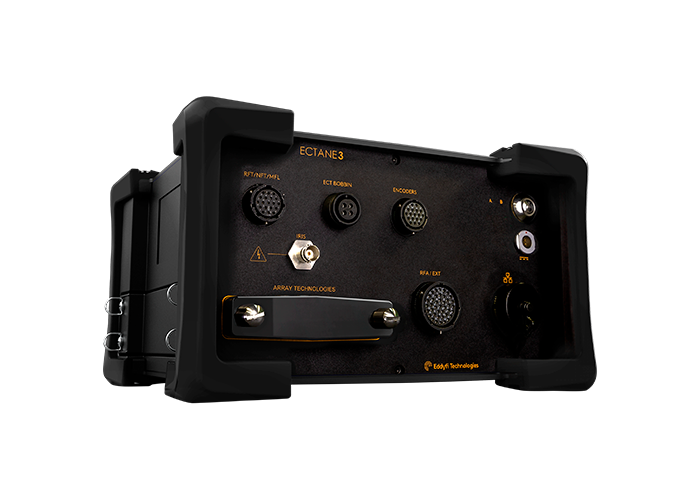

Ectane®3 with 128-channel ECT, RFT, NFT, MFL and IRIS
USD 117,375.00
In stock
SKU
ECTANE3-E128RNMI
- Portable, rugged, IP65, designed for the harshest conditions
- 8 hours autonomy, hot swappable batteries for 100% up time
- Supports ECA, TECA™, MFLA, DefHi, NFA and RFA up to 128 ch.
Lead Time: 1-10 business days (Standard/typical lead time)
Highlights
Description
Ectane®3 inst. for advanced tubing & surface inspections. Array capabilities with SmartMUX™ 128. Supports ECA, RFA, NFA, MFLA and IRIS. IP65. Incl 2 batt, RJ-45 cbl, PS. Requires Magnifi® software version 4.8 and above, sold separately.
| Batteries - typical life | 8 hours |
|---|---|
| Cooling | Sealed and fanless |
| Highly portable easy to use system | Yes |
| Nb. of input channels | 8 |
| Nb. of channels | 128 |
| Remote control availability | Yes |
| Acquisition rate | Up to 50 000 samples/sec |
| Batteries - type | 2x li-ion, rechargeable, DOT compliant |
| Compliance | EN 61010-1,CE, FCC Part 15B, ICES-001(A), AS/NZS CISPR 22, RoHS, ASME |
| Data readback on PC software | Yes |
| ECA multiplexer | SmartMUX |
| ECT bobbin connector | 1X 4-pin |
| ECT receiver gain | 41dB range 23–64dB |
| Frequency range | 5 Hz–10 MHz |
| Injection modes | Multiplexed, simultaneous, continuous |
| MFL receiver gain | 41 dB range, 18–59 dB |
| Probe recognition and setup (ChipID) | Automatic for Array probes |
| Probot probe pusher compatibility | Yes |
| Connectivity | Ethernet, 1000BASE-T |
| Data resolution | 16 bits |
| ECA, TECA and NFA connector | 1x 160-pin array |
| ECT number of generators/coil drivers | 2 |
| Encoder Type | 3 axes, quadrature with individual reset line |
| Extended multiplexer interface | 41-pin EXTENDED ET connector |
| IRIS digitizer | 12 bits, 100 MHz |
| IRIS filters | 4 user-selectable filters, 25 MHz system bandwidth |
| IRIS maximum pulsing rate | Up to 26 kHz |
| IRIS pulser/receiver | 0–200 V drive, 0–70 dB (1 dB steps), 0–40 dB DAC |
| IRIS transducer frequency | 5–20 MHz |
| IRIS turbine speed | Up to 100 RPS for fast pulling |
| IRIS views | Real-time A, B, and C-scans |
| IP rating | IP65 |
| Instrument connection | Automatic |
| Operating humidity | 95%, non-condensing |
| Operating temperature | 0°C to 45°C (32°F to 113°F) |
| Remote controls | Start, stop, null, next file and more |
| RFT number of generators/coil drivers | 2 |
| RFT Frequencies | 5 |
| RFA frequency range | 5 Hz to 2 kHz |
| RFT and NFT receiver gains | 50 dB range, 26–86 dB |
| RFA connector | 41-pin EXTENDED ET connector |
| RFA number of generators/coil drivers | 2 |
| RFA receiver gains | 41 dB range, 23–64 dB |
| Volume | 10 L (610 in3) |
| Weight (without batteries) | 5.9 kg (13 lb) |
| Weight (with batteries) | 6.8 kg (15 lb) |
Depending on the instrument configuration:
- Heat exchangers (ferrous, mildly-ferrous and non-ferrous)
- Fin-fan air coolers and boilers
- Condensers, feedwater heaters
- Chillers, air conditioning / HVAC
- Balance of Plant
"The Ectane can do all the tubing inspection techniques that are required by my customers and the fact that it is battery operated makes it possible to work in any environment. Surface ECA probes also allow be to do more than just tubing. The simple software made it easy to convert our technicians and now the pool is growing."
- Tubing Inspection Manager
