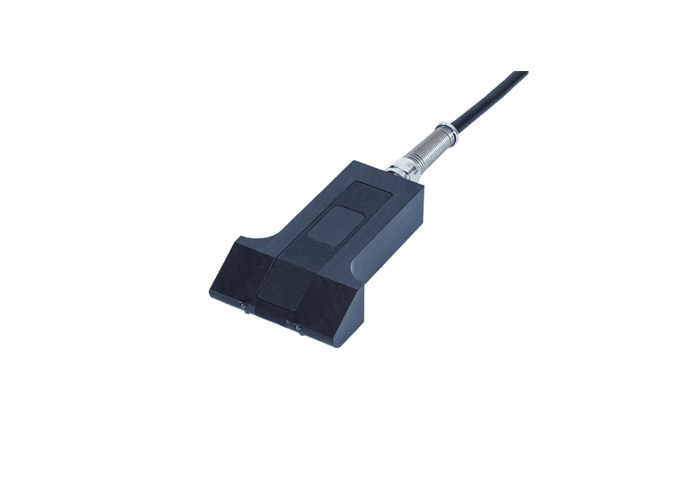

ECA rigid probe for gear inspection, large, 3 m
USD 7,210.00
In stock
SKU
GEAR-M30_42-112-N03T
Lead Time: 1-2 months (Standard/typical lead time)
Description
Standard eddy current array probe for gear inspection, rigid large, 112 mm (4.39 in.) coverage, for modules ranging from 30 to 42, 500 kHz central frequency. Requires 96 channels. Comes with a 160-pin array connector and a 3 meter (9.8 ft) cable.
| Nb. of channels | 91 |
|---|---|
| Frequency range | 300 kHz–1 MHz |
| Coverage | 112 mm (4.4") |
| Alloys | Ferromagnetic |
| Cable length | 3 m (9.8 ft) |
| Central frequency | 500 kHz |
| Coils diameter | 4.5 mm (0.18") |
| Minimum detectable crack (typical) | 5 mm (0.197") |
| Nb. of channels required | 128 channels |
| Nb. of coils | 48 |
| Technology | Eddy current array |
| Topologies | Long Single Driver (LSD) |
"Gear inspection with the Eddyfi gear probe is so easy: faster than MPI, no chemicals used, and a more detailed inspection report for the client."
- NDT Technician
