Dual Linear PAUT Probe, 16 elements, 3.5MHz, A25, 5m
USD 8,425.00
In stock
SKU
3.5DL16-A25-12X5-5-IPEX
Lead Time: 1-2 months (Standard/typical lead time)
Description

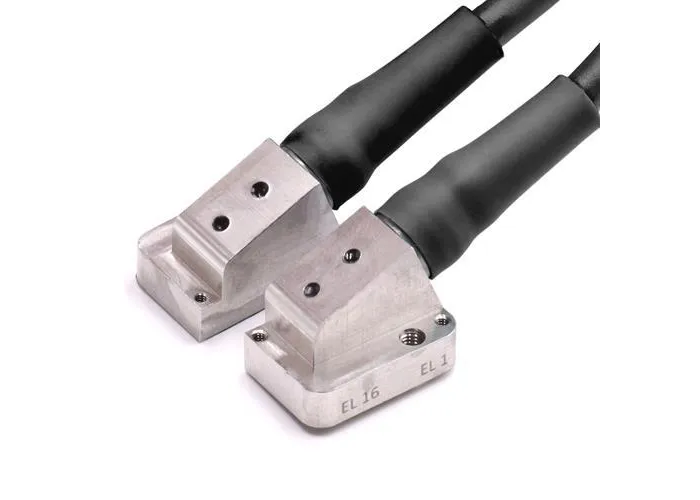

16-element linear array probe - 3.5MHz - Active aperture of 12mm x 5mm - Pitch: 0.75mm - Elevation: 5mm - A25 casing - 5m cable - IPEX connector
| Product type | Low profile weld inspection |
|---|---|
| Connector | IPEX |
| Array type | Dual linear |
| Cable length | 5 m (16 ft) |
| Casing type | A25 |
| Central frequency | 3.5 MHz |
| Impedance matching | Rexolite |
| Nb. of elements/channels | 16 |
| Pitch | 0.75 mm |
| Total active aperture dimensions | 12 mm x 5 mm |
