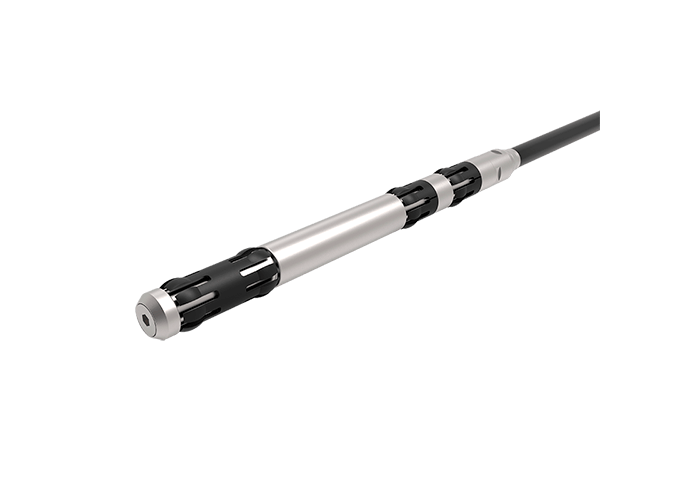

DefHi® ECA probe, circ & axial array, Ø13.6mm HF, 5m
USD 8,030.00
In stock
SKU
DEFHI-ERBCA-136HF-N05
Lead Time: 3-4 months (Standard/typical lead time)
Description
DefHi® ECA probe with bobbin, circumferential array, and axial array. Rigid design, 13.6 mm diameter, HF 100-1200 kHz frequency range, 5 m nylon cable. Comes with the Ectane® 160-pin connector and requires the Ectane® 64 option.
| Center frequency | 500 KHz |
|---|---|
| Connector | 160-pin |
| Wear rings | Yes |
| Centering device | Yes |
| Cable length | 5 m (16 ft) |
| Cable type | Nylon |
| Defect side | ID & OD |
| Frequency | HF |
| Material inspected | Non-ferromagnetic |
| Nb. of channels required | Ectane with the E64 option |
| Nb. of coil rows | 2 |
| Probe diameter (mm) | 13.6 |
| Sleeve | Plastic |
| Tubing probe model | ERBCA – Bobbin, circumferential array and axial array |
| Tubing probe technique | DEFHI |
