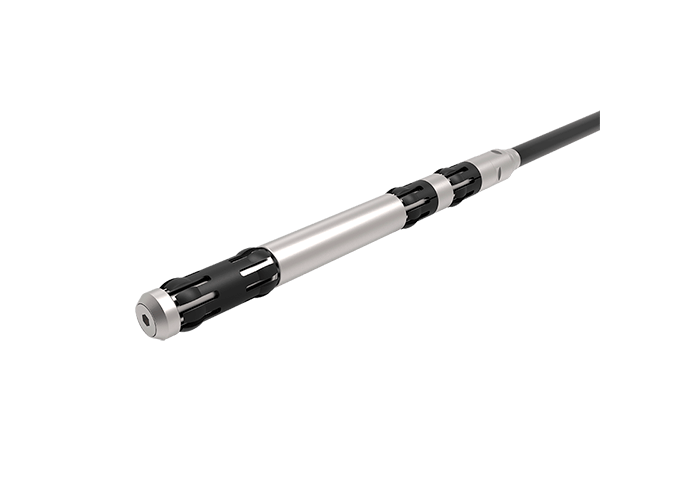

DefHi® ECA probe, circ & axial array, Ø21.6mm HF, 15m

USD 7,500.00
In stock
SKU
DEFHI-ERBCA-216HF-N15

Lead Time: 2-3 months (Standard/typical lead time)

Description

DefHi® ECA probe with bobbin, circumferential array, and axial array. Rigid design, 21.6 mm diameter, HF 100-1000 kHz frequency range, 15 m nylon cable. Comes with the Ectane® 160-pin connector and requires the Ectane® 128 option.
More Information
Center frequency 500 KHz
Connector 160-pin
Wear rings Yes
Centering device Yes
Cable length 15 m (50 ft)
Cable type Nylon
Defect side ID & OD
Frequency HF
Material inspected Non-ferromagnetic
Nb. of channels required Ectane with the E128 option
Nb. of coil rows 2
Probe diameter (mm) 21.6
Sleeve Plastic
Tubing probe model ERBCA – Bobbin, circumferential array and axial array
Tubing probe technique DEFHI
DefHi® ECA probe, circ & axial array, Ø21.6mm HF, 15m
