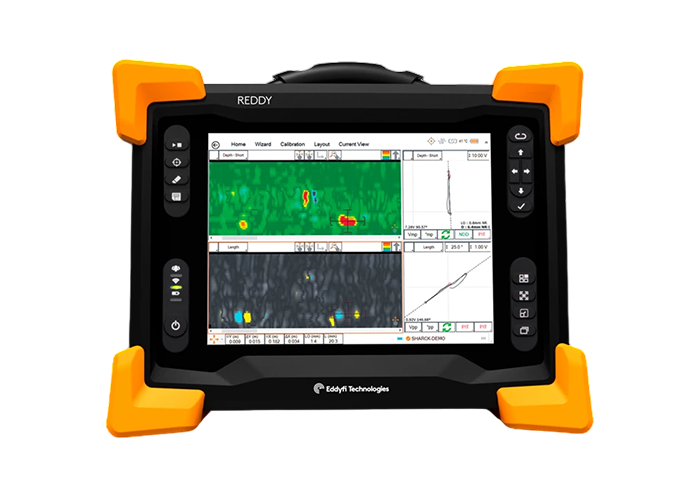

Reddy® with 32-channel ECA
USD 51,995.00
In stock
SKU
REDDY-32
- Entry-level unit for surface ECA inspections
- No MFL capabilities
- No MFL capabilities
Lead Time: 2-5 weeks (Standard/typical lead time)
Highlights
Description
Reddy® portable 32-ch. surface ECA instrument with a large, premium-quality multi-touch display. Incl. 2 batt., power supp., manual, rugged case. Includes perpetual embedded Magnifi® GO software for data acquisition and analysis.
| Array connectors | 1x 160 pin |
|---|---|
| Batteries - typical life | 6-8 hours |
| Cooling | Sealed and fanless |
| Data storage | SSD, 100 GB |
| Display resolution | 1024 × 768 |
| Display size | 26.4 cm (10.4") |
| Display type | Capacitive multi-touch, with 3 mm (1/8 in), chemically strengthened glass cover. Non-reflective (AR coating), anti-fingerprint (oleophobic coating), optically bonded LCD and touchscreen. Passive backlight enhancement |
| Highly portable easy to use system | Yes |
| Multitouch control | Yes |
| Nb. of array channels | 32 |
| Nb. of input channels | 8 |
| Probability of detection | High |
| Rope access applications | Yes |
| Setup creation/management | Setup wizards |
| Acquisition rate | Up to 50 000 samples/sec |
| Batteries - type | 2x li-ion, rechargeable, DOT compliant |
| Compliance | ASME, EN 61010-1, CE, WEEE, FCC Part 15B, ICES-003, AS/NZS CISPR 22, RoHS |
| Data readback on PC software | Yes |
| ECA frequency range | 5 Hz - 10 MHz |
| ECA multiplexer | SmartMUX |
| ECT connectors | 1X 19-pin Fischer |
| ECT frequency range | 5 Hz - 10 MHz |
| ECT simultaneous frequency | Up to 160 |
| Encoders and I/O connectors | 12-pin Fischer |
| Frequency range | 5 Hz–10 MHz |
| Inspection workflows | Optimized, with hard buttons |
| Input impedance | 50 or 100 Ohms |
| Injection modes | Multiplexed, simultaneous, continuous |
| Optional PC software available | Yes |
| Output voltage | Up to 20 Vpp |
| Probe recognition and setup (ChipID) | Automatic |
| Support custom application and probes | Yes |
| Synchronization with I/O | Yes |
| Harness available | Yes |
| Connectivity | Gigabit Ethernet, Wi-Fi, Dual Mode Bluetooth® 2.1, 2.1+EDR, 3.0, 3.0+HS, 4.0 (BLE), USB 2.0 (×3) |
| Dimensions (W x D x H) | 355×288×127 mm (14.0×11.3×5.0 in) |
| Encoder inputs | 2 axes, quadrature |
| IP rating | Designed for IP65 |
| Operating humidity | 95%, non-condensing |
| Operating temperature | 0°C to 40°C (32°F to 104°F) |
| Power supply/requirements | Direct VAC or onboard batteries |
| Supported Technologies/Techniques | ECT, ECA |
| Volume | 13L (793.31 in3) |
| Weight (without batteries) | 5.7 kg (12.5 lb) |
| Video output | HDMI |
| Weight (with batteries) | 6.6 kg (14.5 lb) |
Depending on the instrument configuration:
- Corrosion on ferromagnetic pipes, tank walls and more
- Detecting and sizing cracks in stainless steel welds
- Detecting and assessing stress corrosion cracking
- Butt weld and fillet weld inspection for cracking and surface discontinuities
- Faster, less operator-dependant, surface inspection compared to PT/MT
- Assessing corrosion on aluminum and stainless steel tank floors
- Gear inspection
- Pipeline integrity
"Rugged piece of equipment with the best software in the industry. Using a software that is stable and easy to use not only makes the technicians life easier, it also decreases the inspection time and helps data interpretation for our clients."
- NDT Engineer
