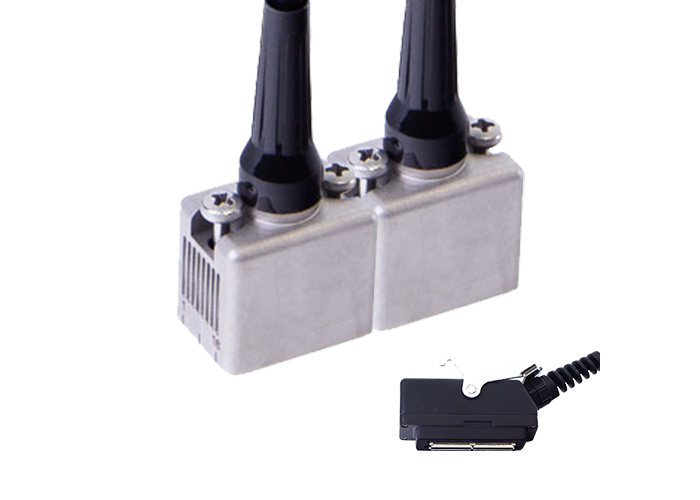

Dual 64 el. matrix PAUT probe, 4MHz, DA2, 5 m
USD 11,825.00
In stock
SKU
PROBE-64DM4-DA2-E-5M
Lead Time: On request (Standard/typical lead time)
Description
64DM4-DA2 - DMA probe 64 elements - DA2 casing - 4MHz frequency. Housing dimensions 10mm x 29mm x 20mm. Dual Matrix Array 16x2 (x2). Pitch 1mm x 3mm. Total active aperture is 16mm x 6mm. Cable length 5 meters.
| Product type | Dual matrix PAUT probes |
|---|---|
| Dimensions | 10 mm x 29 mm x 20 mm |
| Connector | IPEX |
| Array type | Dual matrix |
| Cable length | 5 m (16 ft) |
| Casing type | DA2 |
| Central frequency | 4 MHz |
| Impedance matching | Rexolite |
| Nb. of elements/channels | 64 |
| Pitch | 1 mm x 3 mm |
| Total active aperture dimensions | 16 mm x 6 mm |
