Pocket™ 16:64PR with PAUT, UT, TOFD, IPEX connector

USD 24,710.00
In stock
SKU
POCKET-16:64PR-RUGGED-IPX
  • Small and lightweight multi-technology unit
  • Rugged housing ideal for industrial applications
  • Various acquisition triggers, 3 encoder inputs

Lead Time: 2-4 weeks (Standard/typical lead time)

Highlights

Description

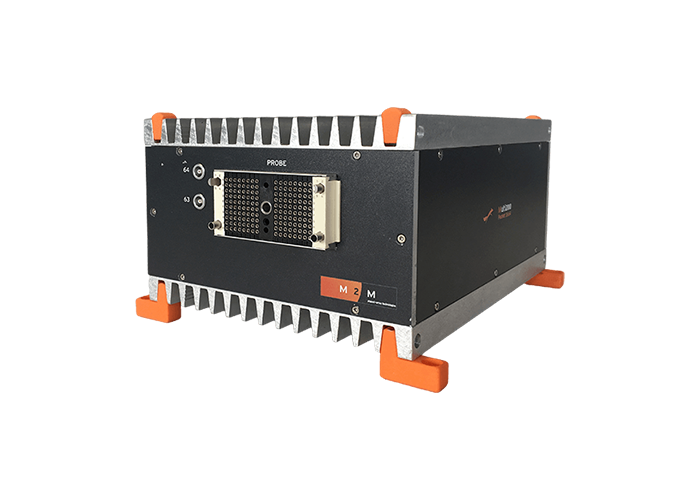

POCKET™ Phased Array system - 16:64PR channel configuration in a rugged, fanless, IP 50 packaging with 1 IPEX connector, 3 encoders, PS & AC adapter, latch adaptor, user's manual. Computer and ACQUIRE software not included.
More Information
A-Scan height (dynamic range) Up to 800%
Adaptive TFM (ATFM) No
Array connectors 1x IPEX
Cooling Fanless no air intake
Data storage Depending Associated Computer
Dimensions (W × D × H) 150x200x100 mm
IP rating IP50
Maximum active aperture 16
Nb. of receiving elements 16
Paperless Reporting Yes
Pulser (PAUT) voltage From 20 V to 80 V (with 1 V steps)
Pulser (UT) voltage From 20 V to 80 V (with 1 V steps)
Remote control availability Yes
Rope access applications No
Setup creation/management Setup wizards, application
Supported technologies/techniques UT, TOFD, PAUT
Total Focusing Method (TFM) No
Volume 3 L (184 in3)
Compliance EN ISO 18563-1:2015 GR2, AITM-00016 Issue5 table7;
Connectivity Depending Associated Computer
Data readback on PC software Yes
Defect table (for reporting) No
Digitizing 16-bit resolution
Encoder inputs 3-axis, 5V optocoupled
Encoders and I/O connectors 1x SUBD15 HD
Frequency range 0.8 MHz to 16 MHz
Gain range (PAUT) Up to 120 dB (0.1 dB steps)
Gain range (UT-TOFD) Up to 120 dB (0.1 dB steps)
Gates Floating and tracking for repeatable and reliable results
Input impedance 50 Ohms
Operating temperature 0°C to 50°C (32°F to 122°F)
Optional PC software available Yes
Programmable alarms Yes
Pulse type (PAUT) Negative square pulse
Pulse type (UT-TOFD) Negative square pulse
Pulse width From 30 to 1280 ns
Support custom application and probes Yes
UT connectors 2x LEMO 00
UT/TOFD connectors 2x LEMO 00
Weight (without batteries) 2.6 kg (5.8 lb)
Power supply/requirements DC 8-18 V 12W AC-100-240V
Synchronization with I/O No
Full screen mode No
External trigger No
Operating humidity 12%RH – 78%RH
Programmable outputs No
Pulser (PAUT) fall time <10 ns
Pulser (UT-TOFD) fall time <10 ns
Reload data from defect table Yes
Storage Depending associated computer
Storage temperature -20°C to 70°C (-4°F to 158°F)
Video output Depending Associated Computer

Depending on the instrument configuration:

  • Laboratory and research
  • Industrial applications
  • High-speed UT/TOFD/PAUT/TFM/PWI inspections
  • Integration with Software development kit (SDK)
