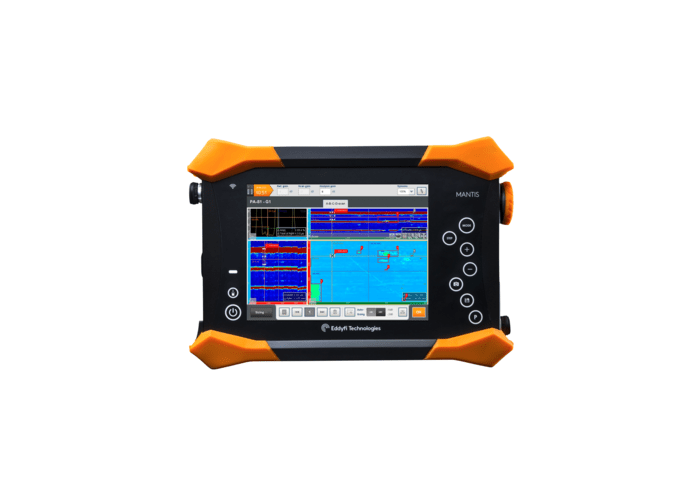

Mantis™16:64PR with PAUT, UT, TOFD without TFM
USD 21,995.00
In stock
SKU
MANTIS-16:64PR
- Entry-level unit in Mantis family, compact flaw detector
- No TFM, can be upgraded later
- Suitable for most weld inspections and corrosion mapping
Lead Time: 1-10 business days (Standard/typical lead time)
Highlights
Description
MANTIS™16:64PR UTPA&TOFD – Multigroup – PRF 12kHz – 2 axis – Plate & Pipe + CAD – 128GB SSD, easy-latch adaptor, 1 batt. PS&AC adaptor, WiFi dongle, manual, rugged case. Incl. perpetual embedded CAPTURE™GO software for data acquisition and analysis.
| A-Scan height (dynamic range) | Up to 800% |
|---|---|
| Adaptive TFM (ATFM) | No |
| Array connectors | 1x IPEX |
| Batteries - typical life | Up to 4 hours |
| Cooling | Sealed with external fans |
| Data storage | SSD, 128 GB |
| Display resolution | 1024 × 768 |
| Display size | 21 cm (8.4") |
| Display type | High contrast resistive touch screen |
| Maximum active aperture | 16 |
| Nb. of receiving elements | 64 |
| Paperless Reporting | Yes |
| Pulser (PAUT) voltage | From 12 V to 90 V (with 1 V steps) |
| Pulser (UT) voltage | From 12 V to 200 V (with 1 V steps) |
| Remote control availability | Yes |
| Rope access applications | Yes |
| Setup creation/management | Setup wizards, application |
| Shockproof rating | According to MIL-STD-810G |
| Total Focusing Method (TFM) | No |
| Batteries - type | 1x li-ion, rechargeable, DOT compliant |
| Compliance | EN ISO 18563-1:2015 GR2, EN 12668-1:2010 GR2, AITM-00016 Issue5 table7; AITM-00013 Issue 6 Table11 |
| Data readback on PC software | Yes |
| Defect table (for reporting) | Yes |
| Digitizing | 16-bit resolution |
| Encoders and I/O connectors | 1x 16-pin LEMO |
| Frequency range | 0.4 MHz to 20 MHz |
| Gain range (PAUT) | Up to 120 dB (0.1 dB steps) |
| Gain range (UT-TOFD) | Up to 120 dB (0.1 dB steps) |
| Gates | Floating and tracking for repeatable and reliable results |
| Input impedance | 50 Ohms |
| Optional PC software available | Yes |
| Programmable alarms | Yes |
| Pulse type (PAUT) | Negative square pulse |
| Pulse type (UT-TOFD) | Negative square pulse |
| Pulse width | 10 ns to 1000 ns |
| Support custom application and probes | Yes |
| UT connectors | 2x LEMO 00 |
| UT/TOFD connectors | 2x LEMO 00 |
| Synchronization with I/O | Yes |
| Full screen mode | Yes |
| Connectivity | Gigabit Ethernet, Wi-fi, USB 2.0 (x1), USB 3.0 (x1) |
| Dimensions (W x D x H) | 311x220x86 mm |
| External trigger | 0 |
| Encoder inputs | 3-axis, TTL (5V) |
| IP rating | Designed for IP65 |
| Operating humidity | 12%RH – 78%RH |
| Operating temperature | 0°C to 40°C (32°F to 104°F) |
| Power supply/requirements | 15 V, 6 A |
| Programmable outputs | No |
| Pulser (PAUT) fall time | <10 ns |
| Pulser (UT-TOFD) fall time | <10 ns |
| Reload data from defect table | Yes |
| Supported Technologies/Techniques | UT, TOFD, PAUT |
| Storage | SSD, 128 GB |
| Storage temperature | -20°C to 60°C (-4°F to 140°F) |
| Volume | 5.88 L (359 in3) |
| Weight (without batteries) | 3.2 kg (7 lb) |
| Video output | HDMI |
| Weight (with batteries) | 3.7 kg (8.2 lb) |
Depending on the instrument configuration:
- Weld inspection (UT, TOFD, PAUT, TFM, PWI)
- Corrosion mapping, including large areas
- Multi-group weld inspection procedures fully covered
- Flange face
- Bolt inspection
- Composite inspection
"The improved user interface in the acquisition window enables the user to adapt and augment their setup without the inconvenience of returning to the main setup parameters, saving valuable time. The new ray tracing features now include important detail regarding angle of intersection with the weld bevel, which is so important."
