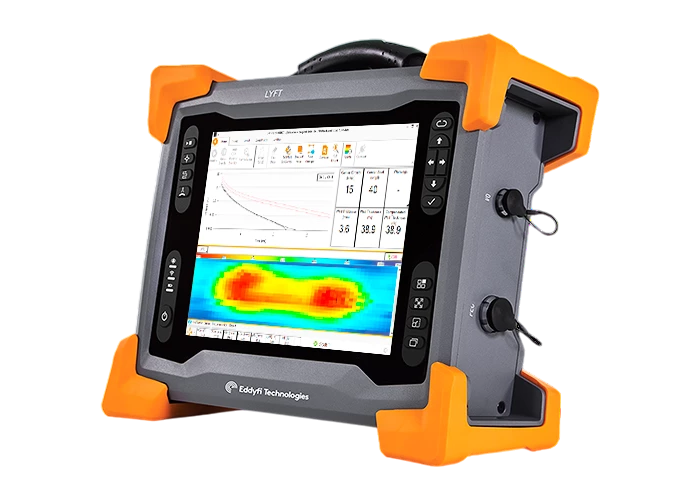

Lyft® pulsed eddy current with grid mapping

USD 66,995.00
In stock
SKU
LYFT-PEC-G
  • Entry-level unit for PEC inspections, market leader
  • No PEC Array or dynamic scanning, can be upgraded later
  • Portable, battery-operated, sealed, large bright display

Lead Time: 2-4 weeks (Standard/typical lead time)

Highlights

Description

Lyft® portable PEC unit, grid mapping mode acquisition capability. Comes with advanced I/O connector. Incl. 2 batt, AC power supp. Includes perpetual embedded Lyft GO software for data acquisition and analysis.
More Information
ACFM connectors 1x Fischer 27-pin
Batteries - typical life 6-8 hours
Cooling Sealed and fanless
Data storage SSD, 100 GB
Display resolution 1024 × 768
Display size 26.4 cm (10.4")
Display type Capacitive multi-touch, with 3 mm (1/8 in), chemically strengthened glass cover. Non-reflective (AR coating), anti-fingerprint (oleophobic coating), optically bonded LCD and touchscreen. Passive backlight enhancement
Full recordable data for mapping Yes
High temperature inspections Yes
Nb. of channels 1
Paperless Reporting Yes
Remote control availability Yes
Rope access applications Yes
Setup creation/management Setup wizards
Shockproof rating According to MIL-STD-810G
Surface discrimination (top or bottom) No
Batteries - type 2x li-ion, rechargeable, DOT compliant
Compliance ASME, EN 61010-1, CE, WEEE, FCC Part 15B, ICES-003, AS/NZS CISPR 22, RoHS
Data readback on PC software Yes
Defect table (for reporting) Yes
Digitizing 32-bit resolution
Inspection workflows Optimized, with hard buttons
Optional PC software available Yes
Probe recognition and setup (ChipID) Yes
Support custom application and probes Yes
Harness available Yes
Full screen mode Yes
Connectivity Gigabit Ethernet, Wi-Fi, Dual Mode Bluetooth® 2.1, 2.1+EDR, 3.0, 3.0+HS, 4.0 (BLE), USB 2.0 (×3)
Dimensions (W x D x H) 355×288×127 mm (14.0×11.3×5.0 in)
Encoder inputs 3-axis, 12 TTL (5V/24V), 6 open collectors
IP rating Designed for IP65
Operating humidity 95%, non-condensing
Operating temperature 0°C to 40°C (32°F to 104°F)
Power supply/requirements 100–240 VAC, 50–60 Hz
Supported Technologies/Techniques PEC
Volume 13L (793.31 in3)

Depending on the instrument configuration:

  • Corrosion Under Insulation (CUI)
  • Corrosion Under Fireproofing (CUF)
  • Insulated pipes and vessels
  • Through aluminum, stainless steel, and galvanized steel weather jackets
  • In-service scab corrosion assessment, no need to remove the scale
  • In-service inspection of storage tank annular plates
  • Underwater and splash zone structures
  • Marine vessels

"After one year of operation, The Lyft® has saved our organisation 2M$ in insulation work and asbestos management."

- Inspection manager
