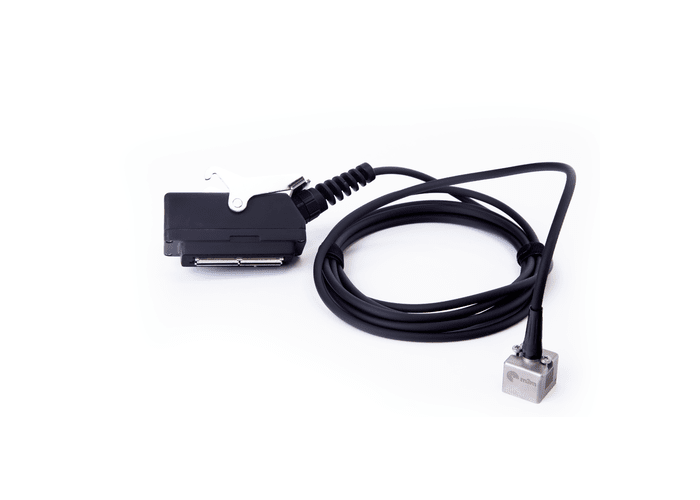

Linear PAUT probe, 64 elements, 15MHz, G2, 2.5 m

USD 10,175.00
In stock
SKU
PROBE-64L15-G2

Lead Time: 2-4 weeks (Standard/typical lead time)

Description

64 element Linear Array Probe - Frequency: 15MHz - Total active aperture: 22.3x7mm - Pitch: 0.35mm - Elevation: 7mm - Impedance adaptation: Rexolite - Cable: 2.5m - Connector: IPEX - Casing: G2 type (25mmx23mmx20mm)
More Information
Product type Linear PAUT probes G2
Dimensions 25 mm x 23 mm x 20 mm
Connector IPEX
Array type Linear
Cable length 2.5 m (8 ft)
Casing type G2
Central frequency 15 MHz
Impedance matching Rexolite
Nb. of elements/channels 64
Pitch 0.35 mm
Total active aperture dimensions 22.3 mm x 7 mm
Linear PAUT probe, 64 elements, 15MHz, G2, 2.5 m
