Gekko® 32:128PR with PAUT, UT, TOFD, TFM 64-channel
- Entry-level unit in Gekko family (32-ch active aperture)
- Superior TFM capabilities
- Multi-group weld inspection fully covered
Lead Time: 4 months (Standard/typical lead time)
Highlights
Description

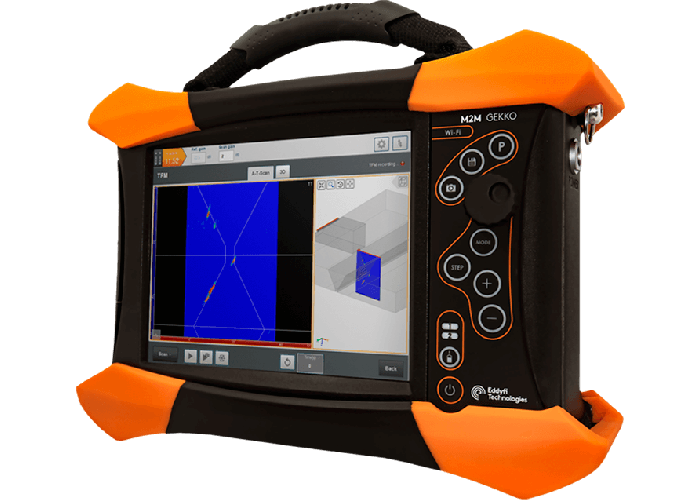

GEKKO® 32:128PR with real-time TFM64. Comes with 256GB SSD, easy-latch adaptor, 2 batt., PS&AC adaptor, WiFi dongle, manual, rugged case. Requires CAPTURE™ GO software subscription, sold separately.
| Cooling | Sealed with external fans |
|---|---|
| Data storage | SSD, 256 GB |
| Display resolution | 1024 × 768 |
| Display size | 26.4 cm (10.4") |
| Display type | High contrast resistive touch screen |
| Maximum active aperture | 32 |
| Nb. of receiving elements | 128 |
| Paperless Reporting | Yes |
| Pulser (PAUT) voltage | From 12 V to 120 V (with 1 V steps) |
| Pulser (UT) voltage | From 12 V to 200 V (with 1 V steps) |
| Real-time TFM refresh rate | Up to 450Hz |
| Remote control availability | Yes |
| Rope access applications | Yes |
| Setup creation/management | Setup wizards, application |
| Shockproof rating | According to MIL-STD-810G |
| Batteries - type | 2x li-ion, rechargeable, DOT compliant |
| Compliance | EN ISO 18563-1:2015 GR2, EN 12668-1:2010 GR2, AITM-00016 Issue5 table7; AITM-00013 Issue 6 Table11 |
| Data readback on PC software | Yes |
| Defect table (for reporting) | Yes |
| Encoders and I/O connectors | 1x 16-pin LEMO |
| Frequency range | 0.4 MHz to 20 MHz |
| Gain range (PAUT) | Up to 120 dB (0.1 dB steps) |
| Gain range (UT-TOFD) | Up to 120 dB (0.1 dB steps) |
| Gates | Floating and tracking for repeatable and reliable results |
| Input impedance | 50 Ohms |
| Optional PC software available | Yes |
| Pulse type (PAUT) | Bipolar square pulse |
| Pulse type (UT-TOFD) | Negative square pulse |
| Pulse width | 30 ns to 1250 ns |
| Support custom application and probes | Yes |
| UT/TOFD connectors | 4x LEMO 00 |
| Full screen mode | Yes |
| Connectivity | Gigabit Ethernet, Wi-fi, USB 2.0 (x3), USB 3.0 (x1) |
| Dimensions (W x D x H) | 400x273x131 mm |
| Encoder inputs | 3-axis, TTL (5V) |
| IP rating | Designed for IP65 |
| Operating humidity | 12%RH – 78%RH |
| Operating temperature | -10° to 45°C (14 to 113°F) |
| Power supply/requirements | 15 V, 5.67 A, 85VA |
| Programmable outputs | No |
| Pulser (PAUT) fall time | <6 ns |
| Pulser (UT-TOFD) fall time | <5ns |
| Reload data from defect table | Yes |
| Supported Technologies/Techniques | UT, TOFD, PAUT, TFM, ATFM, PWI |
| Volume | 14.3L (873 in3) |
| Video output | HDMI |
Depending on the instrument configuration:
- Weld inspection (UT, TOFD, PAUT, TFM, PWI)
- Corrosion mapping, including large areas
- Multi-group weld inspection procedures fully covered
- HTHA and hydrogen damages inspection with TFM
- Thick welds and CRA/stainless steel weld inspection enhanced with 128-element aperture
- Complex geometry dedicated solution for nozzle and fillet welds (Y and T joints)
- Flange face
- Bolt inspection
- Composite inspection
