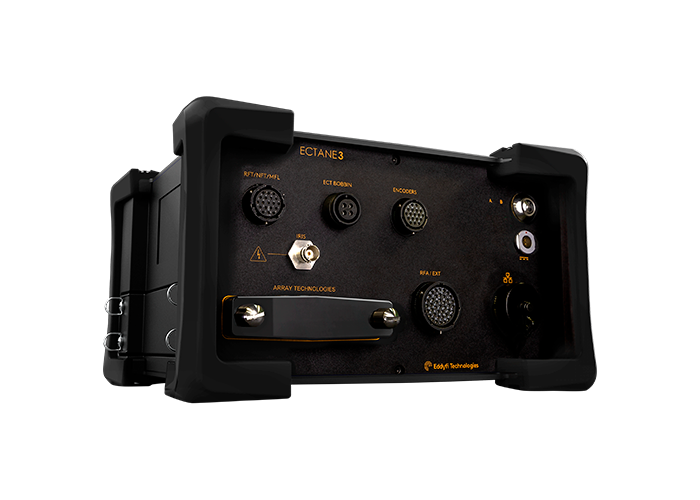

Ectane®3 with 64-channel ECT, RFT, NFT, MFL and IRIS

USD 89,050.00
In stock
SKU
ECTANE3-E64RNMI
  • Portable, rugged, IP65, designed for the harshest conditions
  • 8 hours autonomy, hot swappable batteries for 100% up time
  • Supports ECA, TECA™, MFLA, DefHi, NFA and RFA up to 64 ch.

Lead Time: 2-3 months (Standard/typical lead time)

Highlights

Description

Ectane®3 inst. for advanced tubing & surface inspections. Array capabilities with SmartMUX™ 64. Supports ECA, RFA, NFA, MFLA and IRIS. IP65. Incl 2 batt, RJ-45 cable, PS. Requires Magnifi® software subscription version 4.8 and above, sold separately.
More Information
Batteries - typical life 8 hours
Cooling Sealed and fanless
Highly portable easy to use system Yes
Nb. of input channels 8
Nb. of channels 64
Remote control availability Yes
Acquisition rate Up to 50 000 samples/sec
Batteries - type 2x li-ion, rechargeable, DOT compliant
Compliance EN 61010-1,CE, FCC Part 15B, ICES-001(A), AS/NZS CISPR 22, RoHS, ASME
Data readback on PC software Yes
ECA multiplexer SmartMUX
ECT bobbin connector 1X 4-pin
ECT receiver gain 41dB range 23–64dB
Frequency range 5 Hz–10 MHz
Injection modes Multiplexed, simultaneous, continuous
MFL receiver gain 41 dB range, 18–59 dB
Probe recognition and setup (ChipID) Automatic for Array probes
Probot probe pusher compatibility Yes
Connectivity Ethernet, 1000BASE-T
Data resolution 16 bits
ECA, TECA and NFA connector 1x 160-pin array
ECT number of generators/coil drivers 2
Encoder Type 3 axes, quadrature with individual reset line
Extended multiplexer interface 41-pin EXTENDED ET connector
IRIS digitizer 12 bits, 100 MHz
IRIS filters 4 user-selectable filters, 25 MHz system bandwidth
IRIS maximum pulsing rate Up to 26 kHz
IRIS pulser/receiver 0–200 V drive, 0–70 dB (1 dB steps), 0–40 dB DAC
IRIS transducer frequency 5–20 MHz
IRIS turbine speed Up to 100 RPS for fast pulling
IRIS views Real-time A, B, and C-scans
IP rating IP65
Instrument connection Automatic
Operating humidity 95%, non-condensing
Operating temperature 0°C to 45°C (32°F to 113°F)
Remote controls Start, stop, null, next file and more
RFT number of generators/coil drivers 2
RFT Frequencies 5
RFA frequency range 5 Hz to 2 kHz
RFT and NFT receiver gains 50 dB range, 26–86 dB
RFA connector 41-pin EXTENDED ET connector
RFA number of generators/coil drivers 2
RFA receiver gains 41 dB range, 23–64 dB
Volume 10 L (610 in3)
Weight (without batteries) 5.9 kg (13 lb)
Weight (with batteries) 6.8 kg (15 lb)

Depending on the instrument configuration:

  • Heat exchangers (ferrous, mildly-ferrous and non-ferrous)
  • Fin-fan air coolers and boilers
  • Condensers, feedwater heaters
  • Chillers, air conditioning / HVAC
  • Balance of Plant

"The Ectane can do all the tubing inspection techniques that are required by my customers and the fact that it is battery operated makes it possible to work in any environment. Surface ECA probes also allow be to do more than just tubing. The simple software made it easy to convert our technicians and now the pool is growing."

- Tubing Inspection Manager
