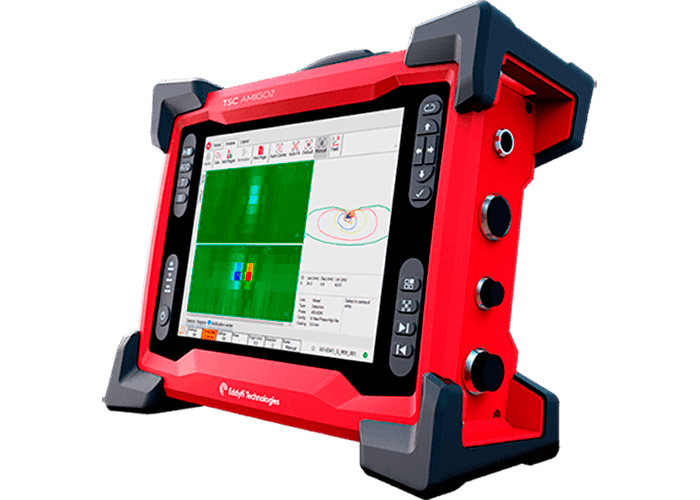

Amigo2 ACFM® array system

USD 45,505.00
In stock
SKU
AMIGO2-ACFM
  • Detect and size surface cracks through paint and coatings
  • Portable, battery-operated, sealed, large bright display
  • Supports previous-generations/legacy probes

Lead Time: On request (Standard/typical lead time)

Highlights

Description

Amigo2 inst. with a large multi-touch display. Supp. legacy, SENSU, SENSU2 probes and array. Includes 2 batt., AC PSU, test block and transp. case. Requires Assist GO software subscription, sold separately.
More Information
ACFM connectors 1x Sensu 2,1x Sensu,1x Legacy
ACFM frequency 5 KHz, 50 KHz
Acquisition modes Clock, Encoded
Array connectors 1x Sensu 2
Batteries - typical life 6-8 hours
Cooling Sealed and fanless
Critical Zone Inspection (Curved Scaning) Yes
Data storage SSD, 100 GB
Display resolution 1024 × 768
Display size 26.4 cm (10.4")
Display type Capacitive multi-touch, with 3 mm (1/8 in), chemically strengthened glass cover. Non-reflective (AR coating), anti-fingerprint (oleophobic coating), optically bonded LCD and touchscreen. Passive backlight enhancement
High temperature inspections Yes
Highly portable easy to use system Yes
Multitouch control Yes
Paperless Reporting Yes
Rapid Coverage Yes
Remote control availability Yes
Rope access applications Yes
Automatic screenshot with defect entry Yes
Batteries - type 2x li-ion, rechargeable, DOT compliant
Communications Ethernet
Compliance ASME, EN 61010-1, CE, WEEE, FCC Part 15B, ICES-003, AS/NZS CISPR 22, RoHS
Data readback on PC software Yes
Defect table (for reporting) Yes
Digitizing 16-bit resolution
Encoders and I/O connectors Fischer DBPU 1031 A012–130
Inspection workflows Yes
Optional PC software available Yes
Probe recognition and setup (ChipID) Yes
Support custom application and probes Yes
Harness available Yes
Connectivity Gigabit Ethernet, Wi-Fi, Dual Mode Bluetooth® 2.1, 2.1+EDR, 3.0, 3.0+HS, 4.0 (BLE), USB 2.0 (×3)
Dimensions (W x D x H) 355×288×127 mm (14.0×11.3×5.0 in)
Encoder inputs 2 inputs, quadrature
IP rating IP65
Operating humidity 95%, non-condensing
Operating temperature -10° to 45°C (14 to 113°F)
Power supply/requirements 100–240 VAC ± 10% 50–60 Hz
Supported Technologies/Techniques ACFM
Storage temperature -20°C to 60°C (-4°F to 140°F)
Volume 13L (793.31 in3)
Video output HDMI
Weight (with batteries) 6.6 kg (14.5 lb)
  • Weld inspection: with standard probes and single-pass array probes
  • One or two-person operation (e.g. confined spaces)
  • High-temperature applications
  • Inspection through thick coatings
  • Thread inspection
  • Underwater inspection

"The software, the buttons on the probes and having everything integrated in that little red box makes it easier than anything ACFM before it. Combining that with what feels like doubled scan speeds, high data quality and instant reporting you get very good productivity from this kit. "

- ACFM Level II Operator
